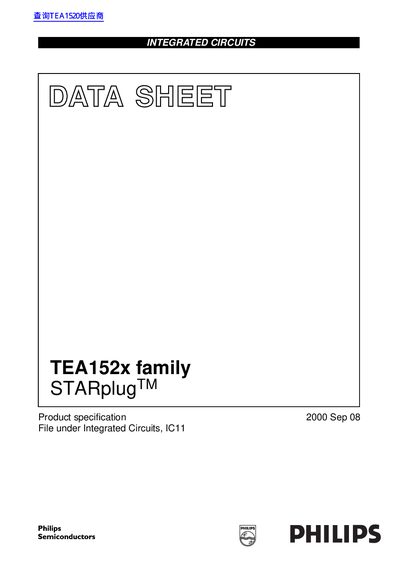

Philips TEA152x Family Integrated Circuits Data Sheet
This document is a product specification datasheet for the Philips TEA152x family of Integrated Circuits (ICs). The devices are designed as Switched Mode Power Supply (SMPS) controllers that operate directly from rectified universal mains voltage. They feature an integrated high-voltage power switch and utilize valley switching to minimize switch-on losses, enabling efficient slim-line electronic power plug concepts.
Read onlinePhilips TEA152X specifications
| Drain-source on-state resistance (TEA1520) | 48 Q; 650 V |
|---|---|
| Drain-source on-state resistance (TEA1521) | 24 Q; 650 V |
| Drain-source on-state resistance (TEA1522) | 12 Q; 650 V |
| Drain-source on-state resistance (TEA1523) | 6.5 Q; 650 V |
| Drain-source on-state resistance (TEA1524) | 3.4 Q; 650 V |
| Maximum supply voltage (Vocimax) | 40 V |
| Oscillator frequency range | 10 to 200 kHz |
| Ambient temperature range | -20 to +85 C |
Source: Philips TEA152x Family Integrated Circuits Data Sheet
All Philips TEA152X documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the typical application areas for the TEA152x family?
Typical applications include chargers, adapters, set top boxes (STB), DVD and CD players, TV/monitor standby supplies, PC peripherals, and microcontroller supplies.
What is the maximum power output for general purpose supplies using this family?
The TEA152x family is designed for general purpose supplies up to 50 W.
What is the input voltage range for the TEA152x family?
The TEA152x family operates from universal AC mains with an input range of 80 V to 276 V.
Which package types are available for the TEA152x family?
The ICs are offered in 8‑pin DIP, 14‑pin SO and 9‑pin DBS packages.
What is the typical charge current for the TEA152X?
The TEA152X typically charges at 4 mA.
What is the typical charge current for the TEA162X?
The TEA162X typically charges at 500 µA.
