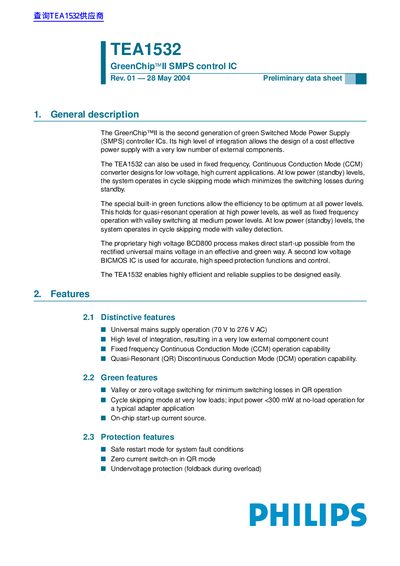

Philips TEA1532 GreenChip II SMPS Control IC Preliminary Data Sheet
The Philips TEA1532 is a GreenChip II SMPS control IC designed for cost-effective power supply designs with a low external component count. It supports universal mains supply operation from 70 V to 276 V AC and offers high levels of integration.
Read onlinePhilips TEA1532 specifications
| Universal mains supply operation range | 70 V to 276 V AC |
|---|---|
| Maximum output power | 250 W |
| No-load input power | <300 mW |
| Package type TEA1532T | SOT96-1 |
| Package type TEA1532P | SOT97-1 |
Source: Philips TEA1532 GreenChip II SMPS Control IC Preliminary Data Sheet
All Philips TEA1532 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum output power supported by this IC?
The device can be used in applications demanding an efficient and cost-effective solution up to 250 W.
From: Philips TEA1532 GreenChip II SMPS Control IC Preliminary Data Sheet
What is the operating mains voltage range for this controller?
The IC supports universal mains supply operation from 70 V to 276 V AC.
From: Philips TEA1532 GreenChip II SMPS Control IC Preliminary Data Sheet
What protection features does the Green Chip II family provide?
It includes over‑voltage (OVP), over‑current (OCP), over‑power (OPP), coil short‑circuit (SWP), output short‑circuit (SCP) and over‑temperature (OTP) protections.
Which applications are suitable for the TEA1533, TEA1552 and TEA1532 controllers?
They are used in LCD monitor SMPS/adaptors, notebook adapters, DVD‑RW power supplies and other high‑efficiency converters up to 250 W.
