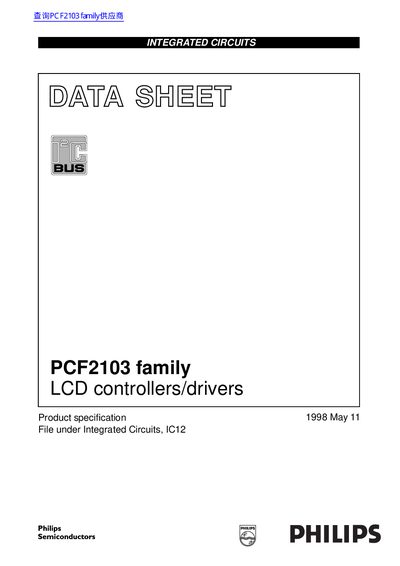

Philips PCF2103 Family LCD Controllers/Drivers Datasheet
The PCF2103 family is a low power CMOS LCD controller and driver designed to drive dot matrix LCD displays. It supports 2-line by 12 or 1-line by 24 character formats with 5x8 data format, including support for kana (Japanese syllabary) and user-defined symbols.
The chip provides all necessary functions in a single package, including on-chip generation of LCD bias voltages to minimize external components. It interfaces to microcontrollers via a 4 or 8-bit parallel bus or a 2-wire I²C-bus.
Philips PCF2103 specifications
| Display lines and characters | 2-line display of up to 12 characters + 120 icons, or 1-line display of up to 24 characters + 120 icons |
|---|---|
| Character format | 5x7 character format plus cursor; 5 x 8 for kana and user defined symbols |
| Display data RAM capacity | 80 characters |
| Character generator ROM capacity | 240, 5 x 8 characters |
| Logic supply voltage range | 1.8 to 5.5 V |
| Display supply voltage range | 2.2 to 6.5 V |
| LCD outputs | 18 row, 60 column outputs |
Source: Philips PCF2103 Family LCD Controllers/Drivers Datasheet
All Philips PCF2103 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What interfaces does the PCF2103 support?
The chip supports a 4 or 8-bit parallel bus and a 2-wire I²C-bus interface.
From: Philips PCF2103 Family LCD Controllers/Drivers Datasheet
Does the PCF2103 require external components for oscillation?
No, the on-chip oscillator requires no external components, though an external clock is also possible.
From: Philips PCF2103 Family LCD Controllers/Drivers Datasheet
What is the display capacity of the PCF2103?
It supports a 2-line display of up to 12 characters plus 120 icons, or a 1-line display of up to 24 characters plus 120 icons.
From: Philips PCF2103 Family LCD Controllers/Drivers Datasheet
Does the PCF2103 require external components for the oscillator?
No, the on-chip oscillator requires no external components, though an external clock is also possible.
From: Philips PCF2103 Family LCD Controllers/Drivers Datasheet
