Philips PCF2116 Manuals

Key facts

Brand: Philips
Model: PCF2116
Industry: Industrial
Documents: 2
Languages: EN
Last added: 2012-07-04

Start here

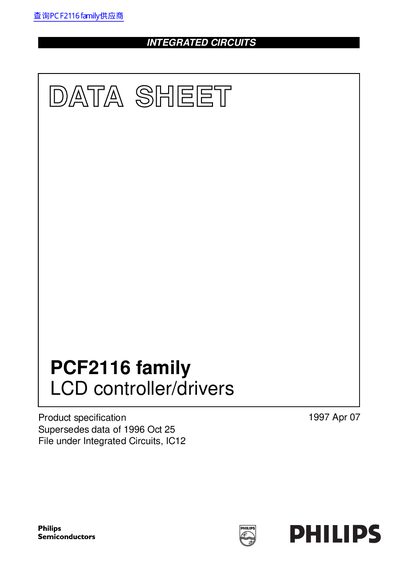

Philips PCF2116 Family LCD Controller/Drivers Data Sheet

Datasheet 64 pages · 297 KB · EN

The Philips PCF2116 family of LCD controller/drivers is designed to drive split-screen dot matrix LCD displays of 1 or 2 lines by 24 characters, or 2 or 4 lines by 12 characters. The device supports a 5x7 character format plus cursor, as well as 5x8 for kana and user-defined symbols. It includes on-chip generation of LCD supply and bias voltages, reducing the need for external components.

Read online

Philips PCF2116 specifications

Display lines	1 or 2 lines
Characters per line	up to 24
Character format	5x7 plus cursor
Display data RAM	80 characters
Character generator ROM	240 characters
Character generator RAM	16 characters
Logic supply voltage	2.5 to 6 V
Display supply voltage	3.5 to 9 V
Row driver outputs	32
Column driver outputs	60

Source: Philips PCF2116 Family LCD Controller/Drivers Data Sheet

All Philips PCF2116 documents by type

Datasheet 2

Ratings, dimensions and ordering codes, for selection and design work.

Questions answered in these manuals

What are the applications for the PCF2116?

The PCF2116 is suitable for telecom equipment, portable instruments, and point-of-sale terminals.

From: Philips PCF2116 Family LCD Controller/Drivers Data Sheet

Does the PCF2116 require external components for the oscillator?

No, the oscillator requires no external components, although an external clock is also possible.

From: Philips PCF2116 Family LCD Controller/Drivers Data Sheet

What are the applications for the PCF2116 family?

The device is suitable for telecom equipment, portable instruments, and point-of-sale terminals.

From: Philips PCF2116 Family LCD Controller/Drivers Datasheet

What character sets are available in the PCF2116x series?

The built-in character sets currently available are specified by the letters A, C, and G.
