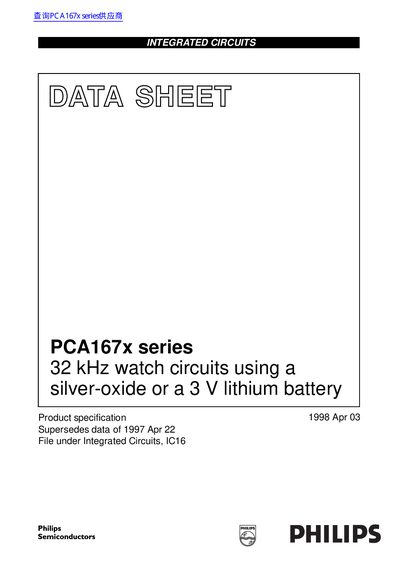

Philips PCA167x Series Integrated Circuits Datasheet
This document is a product specification datasheet for the PCA167x series of integrated circuits manufactured by Philips Semiconductors. These devices are designed as 32 kHz watch circuits suitable for battery-operated, quartz-crystal-controlled wrist-watches using bipolar stepping motors.
The datasheet provides comprehensive technical details including features such as a 32 kHz amplitude-regulated oscillator with high immunity to leakage currents and very low current consumption (typically 150 nA). It includes ordering information for various types (PCA1672U through PCA1677U), pin configurations, functional descriptions of motor pulses and test modes, electrical specifications, limiting values, handling precautions, chip dimensions, package outlines, and typical application circuit diagrams.
Philips PCA167X specifications
| Oscillator Frequency | 32 kHz |
|---|---|
| Supply Voltage (Typical) | 1.5 V |
| Supply Current (Typical) | 150 nA |
| Operating Temperature Range | -10 to +60 C |
| Motor Pulse Cycle Time Options | 1, 5, 10, 12 or 20 ms |
Source: Philips PCA167x Series Integrated Circuits Datasheet
All Philips PCA167X documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What batteries are compatible with the PCA167x series?
The devices are designed for use with a silver-oxide or a 3 V lithium battery.
What is the typical current consumption of the PCA167x?
The device features very low current consumption, typically 150 nA.
What batteries are compatible with this series?
The devices use either a silver-oxide or a 3 V lithium battery.
What is the function of the RESET pin?
Connecting the RESET to Vpp stops motor pulses and produces a 32 Hz signal at the TEST pin.
