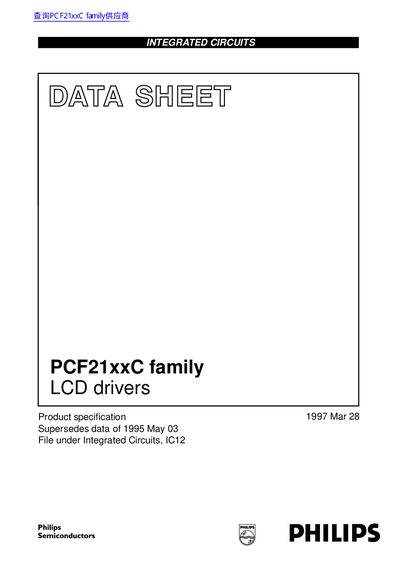

Philips PCF21xxC Family LCD Drivers Datasheet
Datasheet 24 pages · 135 KB · EN
This document is a product specification datasheet for the Philips PCF21xxC family, which includes the PCF2100C, PCF2111C, and PCF2112C models. These are single-chip silicon gate CMOS LCD driver circuits designed to drive up to 64 segments with a maximum operating voltage of 6.0 V.
Read onlinePhilips PCF21XXC specifications
| Supply voltage | 2.25 to 6.0 V |
|---|---|
| Operating ambient temperature | -40 to +85 °C |
| Storage temperature | -65 to +150 °C |
| Maximum power dissipation per output | 100 mW |
All Philips PCF21XXC documents by type
Datasheet 3
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum power dissipation per output?
The maximum power dissipation per output is 100 mW.
What is the operating ambient temperature range?
The operating ambient temperature ranges from -40 to +85 °C.
What are the supply voltage limits for this product family?
The devices operate with a supply voltage between 2.25 and 6.0 V.
What is the maximum power dissipation per output?
The maximum power dissipation per output is 100 mW.
What is the maximum ambient operating temperature?
The maximum operating ambient temperature is +85 °C.
