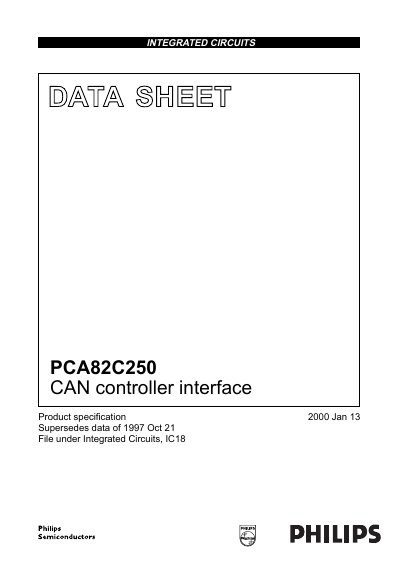

Philips PCA82C250 CAN Controller Interface Datasheet
The Philips PCA82C250 is a CAN controller interface designed for high-speed applications up to 1 Mbaud in automotive environments. It serves as the interface between the CAN protocol controller and the physical bus, providing differential transmit and receive capabilities. The device is fully compatible with the ISO 17898 standard and includes features such as slope control to reduce Radio Frequency Interference (RFI) and a differential receiver with a wide common-mode range for high immunity against ElectroMagnetic Interference (EMI).
Read onlinePhilips PCA82C250 specifications
| Maximum transmission speed | 1 Mbaud |
|---|---|
| Supply voltage | 4.5 to 5.5 V |
| Supply current (standby) | 170 uA |
| Operating temperature range | -40 to +125 C |
| Package type | DIP8, SOT96-1, Bare die |
| Short-circuit CANH current | -105 to -120 mA |
| Short-circuit CANL current | 160 mA |
Source: Philips PCA82C250 CAN Controller Interface Datasheet
All Philips PCA82C250 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum transmission speed of the PCA82C250?
The device supports high-speed applications up to 1 Mbaud.
Is the PCA82C250 compatible with ISO 17898?
Yes, the device is fully compatible with the ISO 17898 standard.
What is the maximum transmission speed of the PCA82C250?
The device supports high-speed applications up to 1 Mbaud.
Is the PCA82C250 compatible with ISO 17898?
Yes, the device is fully compatible with the ISO 17898 standard.
What is the maximum data rate supported by the PCA82C250/251 transceivers?
The transceivers support a maximum data rate of up to 1 Mbit/s.
From: PHILIPS APPLICATION NOTE PCA82C250 251 CAN Transceiver AN96116 handbook
What supply voltages are required for the PCA82C250 and PCA82C251?
The PCA82C250 operates from a nominal 12 V supply, while the PCA82C251 can be powered from 12 V or 24 V.
From: PHILIPS APPLICATION NOTE PCA82C250 251 CAN Transceiver AN96116 handbook
