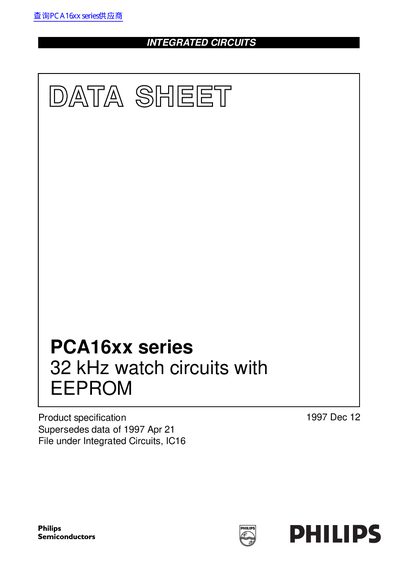

Philips PCA16xx Series 32 kHz Watch Circuits with EEPROM Datasheet
The Philips PCA16xx series consists of CMOS integrated circuits specially suited for battery-operated, quartz-crystal-controlled wrist-watches with bipolar stepping motors. The devices include a 32 kHz oscillator with excellent frequency stability and an internal EEPROM for electrically programmable time calibration. They require only a quartz crystal as an external component and offer very low current consumption, typically 170 nA.
Read onlinePhilips PCA16XX specifications
| Oscillator Frequency | 32 kHz |
|---|---|
| Supply Voltage | 1.2 to 2.5 V |
| Typical Supply Current | 170 nA |
| Operating Temperature | -10 to +60 C |
| Storage Temperature | -30 to +100 C |
| Motor Pulse Width | 2 ms to 15.7 ms |
Source: Philips PCA16xx Series 32 kHz Watch Circuits with EEPROM Datasheet
All Philips PCA16XX documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What external components are required for the PCA16xx series?
A quartz crystal is the only external component required.
From: Philips PCA16xx Series 32 kHz Watch Circuits with EEPROM Datasheet
How is time calibration performed on these devices?
Time calibration is electrically programmable and reprogrammable via the internal EEPROM.
From: Philips PCA16xx Series 32 kHz Watch Circuits with EEPROM Datasheet
What external components are required for the PCA16xx series?
A quartz crystal is the only external component required.
From: Philips PCA16xx Series 32 kHz Watch Circuits with EEPROM Datasheet
How is time calibration performed on these circuits?
Time calibration is electrically programmable and reprogrammable via EEPROM by varying the supply voltage to program a specific number of inhibited pulses.
From: Philips PCA16xx Series 32 kHz Watch Circuits with EEPROM Datasheet
