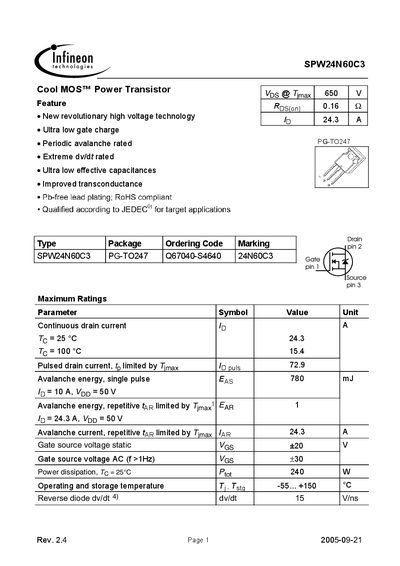

Infineon SPW24N60C3 Cool MOS Power Transistor Datasheet
The SPW24N60C3 is a Cool MOS™ power transistor featuring ultra‑low gate charge, low effective capacitances and high voltage capability. It is RoHS‑compliant and qualified for target applications according to JEDEC® standards.
The document lists maximum ratings, thermal and electrical characteristics, typical output and transfer curves, gate‑charge data and avalanche performance. It also includes mechanical dimensions and safety notices for life‑support device usage.
Infineon SPW24N60C3 specifications
| Continuous drain current (Id) @ 25 °C | 24.3 A |
|---|---|
| Pulsed drain current (Id,pulse) @ 25 °C | 72.9 A |
| Maximum on‑state resistance (Rds(on)) | 0.16 Ω |
| Input capacitance (Ciss) | 2800 pF |
| Output capacitance (Coss) | 930 pF |
| Reverse recovery time (trr) | 600 ns |
| Power dissipation (Pd) @ 25 °C | 240 W |
| Operating temperature range | -55 °C to 150 °C |
| Gate threshold voltage (Vgs(th)) typical | 3.9 V |
| Avalanche energy (single pulse) | 780 mJ |
