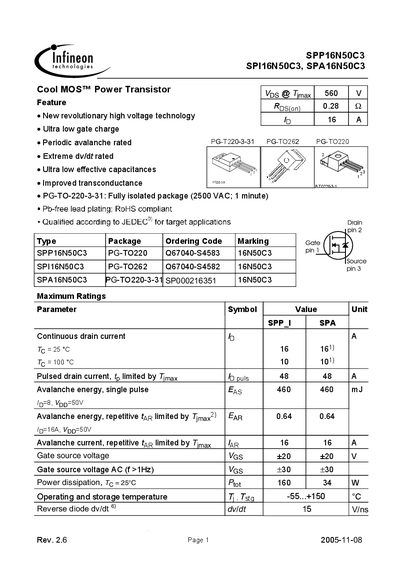

Infineon SPP16N50C3 / SPI16N50C3 / SPA16N50C3 Datasheet
The SPP16N50C3, SPI16N50C3 and SPA16N50C3 are Cool MOS™ power transistors offering 580 V rating, ultra‑low gate charge and high transconductance. They are supplied in several isolated and non‑isolated TO‑220 and TO‑262 packages and are RoHS compliant.
The datasheet provides maximum ratings such as 16 A continuous drain current, 500 V drain‑source voltage, 20 V gate‑source voltage and 160 W power dissipation (25 °C). Thermal characteristics include a junction‑to‑case resistance of 0.78 K/W and detailed transient thermal impedance curves. Electrical parameters like capacitances, on‑state resistance, gate charge and avalanche energy (460 mJ) are also listed.
Infineon SPI16N50C3 specifications
| Gate‑Source voltage (VGS) | +20 V (continuous), +30 V (AC) |
|---|---|
| Power dissipation (PD) | 160 W at 25 °C |
| Avalanche energy (single pulse) | 460 mJ |
Source: Infineon SPP16N50C3 / SPI16N50C3 / SPA16N50C3 Datasheet
