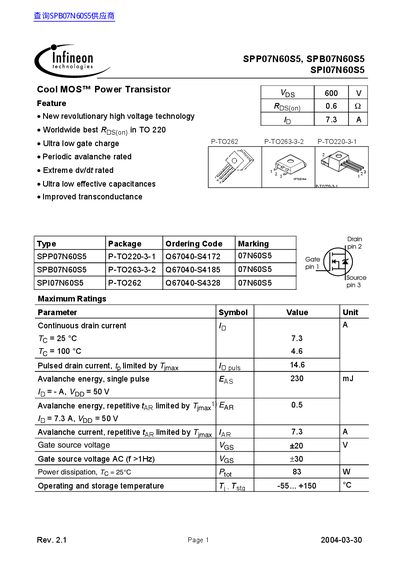

lnfineon SPP07N60S5 SPB07N60S5 SPI07N60S5 Data Sheet
Datasheet 12 pages · 321 KB · EN
This document is a technical datasheet for the Infineon Technologies SPPO7N60S5, SPBO7N60S5, and SPIO7N60S5 Cool MOS Power Transistors. These devices feature a 600V drain-source breakdown voltage and are available in P-TO220-3-1, P-T0263-3-2, and P-TO262 packages.
Read onlineInfineon SPP07N60S5 specifications
| Continuous drain current (Tc = 25°C) | 7.3 A |
|---|---|
| Power dissipation (Tc = 25°C) | 83 W |
| Operating temperature range | -55... +150 °C |
Source: lnfineon SPP07N60S5 SPB07N60S5 SPI07N60S5 Data Sheet
All Infineon SPP07N60S5 documents by type
Datasheet 1
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum continuous drain current at a junction temperature of 25°C?
The device supports a continuous drain current of 7.3 A when the junction temperature is 25°C.
What are the operating and storage temperature limits for this transistor?
The component can operate and be stored within a range of -55 to +150 °C.
Which package types are available for this transistor?
It is offered in PG‑TO220 and PG‑TO262 surface‑mount packages.
