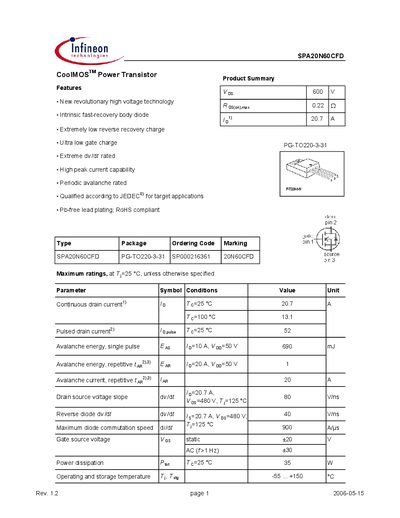

Infineon SPA20N60CFD CoolMOS Power Transistor Datasheet
The SPA20N60CFD is a CoolMOS™ power transistor offered by Infineon Technologies. The document presents a detailed product summary, including key features such as low gate charge, high dv/dt rating, and fast‑recovery body diode.
Technical data cover maximum ratings, thermal characteristics, static and dynamic electrical parameters, reverse‑diode behavior, and safe operating area. Compliance notes (JEDEC, RoHS) and handling warnings are also included.
Infineon SPA20N60CFD specifications
| Continuous drain current (Id) | 20.7 A |
|---|---|
| Maximum power dissipation (P_D) | 35 W |
| Thermal resistance, junction‑case (Rjc) | 3.6 K/W |
| Gate charge total (Qg) | 95‑124 nC |
