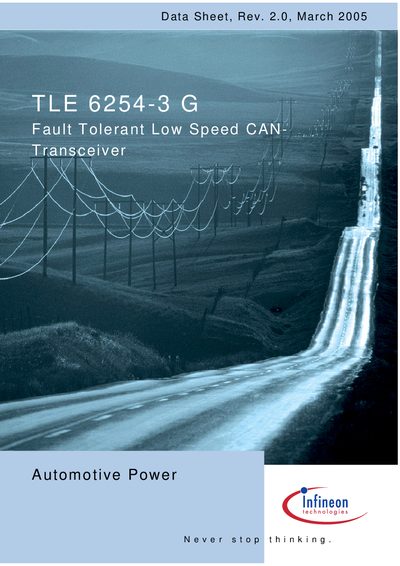

Infineon TLE 6254-3 G Fault Tolerant Low Speed CAN Transceiver Datasheet
The Infineon TLE 6254-3 G transceiver provides a robust interface between a CAN controller and the physical bus, supporting fault‑tolerant operation and low‑speed data transmission up to 125 kBaud. It includes features such as wake‑up input, battery‑fail flag, and automatic switch to a single‑wire mode when bus wiring failures are detected.
The device is supplied in a 14‑pin P‑DSO‑14‑19 package and offers various control pins (INH, NSTB, ENT, WK, etc.) for power‑saving modes, termination resistor control, and error flag signaling. It is intended for automotive and industrial applications where safety and reliability are critical.
Infineon TLE 6254-3 G specifications
| Maximum data transmission rate | 125 kBaud |
|---|---|
| Supply voltage | +5 V |
| Package type | P-DSO-14-19 |
| One‑wire transmission capability | Ground offset up to 1.5 V |
All Infineon TLE 6254-3 G documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum data transmission rate of the TLE 6254-3 G?
It supports data transmission rates up to 125 kBaud.
From: Infineon TLE 6254-3 G Fault Tolerant Low Speed CAN Transceiver Datasheet
What is the supply voltage requirement for the transceiver?
The transceiver requires a +5 V supply voltage.
From: Infineon TLE 6254-3 G Fault Tolerant Low Speed CAN Transceiver Datasheet
What is the maximum data transmission rate of the TLE 6254-3 G?
It can transmit data at rates up to 125 kBaud.
What supply voltage is required for the transceiver?
The transceiver operates with a +5 V supply voltage.
