Infineon XC164CM U CAN Start Kit User Manual

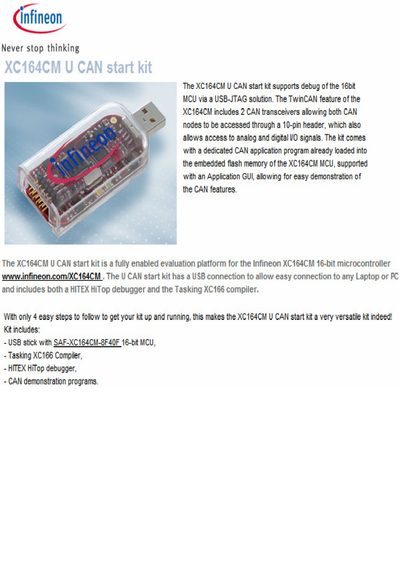

The XC164CM U CAN start kit is an evaluation platform for Infineon's 16‑bit XC164CM microcontroller, providing USB‑JTAG debugging and TwinCAN functionality with two CAN transceivers. It enables access to analog and digital I/O through a 10‑pin header and includes a pre‑loaded CAN application program with a GUI for demonstration.
The kit contains a USB stick with the SAF‑XC164CM‑OF40F MCU, a Tasking XC166 compiler, a HITEX HiTop debugger, and CAN demonstration programs. Setup is simplified to four easy steps, allowing quick connection to a laptop or PC via USB.
Infineon XC164CM specifications
| CPU | Single‑cycle 16‑bit CPU with 5‑stage pipeline |
|---|---|
| On‑chip Flash | 64 KB eFlash with ECC |
| On‑chip SRAM | 2 KB dual‑port RAM, 2 KB data SRAM, 2 KB program/data SRAM |
| A/D Converter | 14‑channel, conversion time down to 2.15 µs |
| Interrupt System | 16 priority levels, up to 75 sources |
| Package | 64‑pin PG‑TQFP, 0.5 mm pitch |
| Address Space | 16 MB linear address space for code and data |
| I/O Pins | Up to 47 general‑purpose I/O |
Source: Infineon XC164CM Handbook
