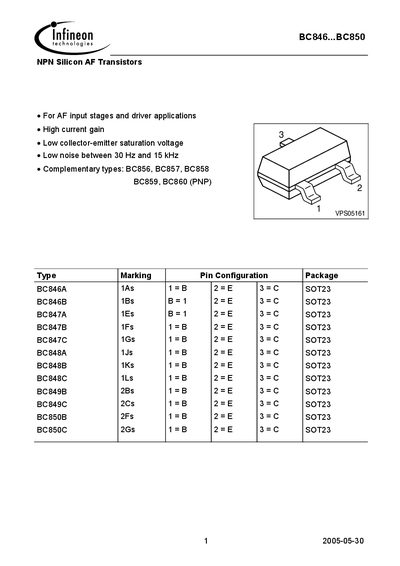

Infineon BC846‑BC850 NPN Silicon AF Transistors Datasheet
The BC846‑BC850 family comprises NPN silicon AF transistors designed for AF input stages and driver applications. They offer high current gain, low collector‑emitter saturation voltage, and low noise from 30 Hz to 15 kHz, making them suitable for audio and precision circuits.
The datasheet provides maximum ratings, DC and AC electrical characteristics, noise figures, and package information for the SOT‑23 devices, including values such as VCEO up to 65 V, Ic max 100 mA, transition frequency up to 250 MHz, and power dissipation of 330 mW.
Infineon BC846 specifications
| Collector‑emitter voltage (VCEO) | 65 V (BC846), 45 V (BC847), 30 V (BC848) |
|---|---|
| DC collector current (Ic) | 100 mA |
| Total power dissipation (Ptot) | 330 mW |
| Transition frequency (ft) | 250 MHz |
| Package type | SOT‑23 |
Source: Infineon BC846‑BC850 NPN Silicon AF Transistors Datasheet
All Infineon BC846 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum collector‑emitter voltage for the BC846 transistor?
The BC846 can withstand up to 65 V between collector and emitter.
From: Infineon BC846‑BC850 NPN Silicon AF Transistors Datasheet
What package are the BC846‑BC850 transistors supplied in?
They are offered in a SOT‑23 surface‑mount package.
From: Infineon BC846‑BC850 NPN Silicon AF Transistors Datasheet
What is the maximum collector‑emitter voltage for the BC846 transistor?
The BC846 can withstand up to 65 V collector‑emitter voltage.
What is the maximum collector current for the BC846 series?
The maximum collector current is 100 mA.
