Start here

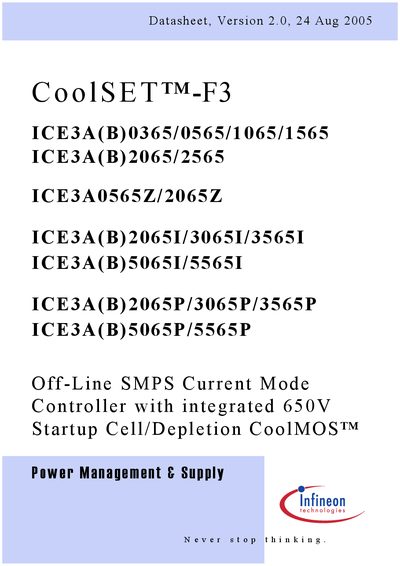

Infineon CoolSET-F3 Datasheet
The CoolSET-F3 is an off‑line SMPS current‑mode controller featuring an integrated 650 V CoolMOS™ startup cell and Active Burst Mode for ultra‑low standby power (<100 mW). It offers fast load‑jump response, auto‑restart protection modes, and a wide input voltage range of 85‑265 VAC.
The datasheet includes pin configurations for DIP and TO‑220 packages, electrical characteristics such as a fixed 67/100 kHz switching frequency, a maximum duty cycle of 72 %, and mechanical dimensions. It also outlines typical applications and highlights the device's RoHS‑compliant, Pb‑free packaging.
Infineon CoolSET‑F3 specifications
| Standby Power Requirement | < 100 mW |
|---|---|
| Maximum Duty Cycle | 72 % |
| Switching Frequency | 67 kHz / 100 kHz (fixed) |
| Input Voltage Range | 85‑265 VAC |
Source: Infineon CoolSET-F3 Datasheet
All Infineon CoolSET‑F3 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the standby power consumption of the CoolSET-F3?
The CoolSET-F3 consumes less than 100 mW in standby mode.
What protection features are included in the CoolSET-F3?
It provides Auto Restart Mode for over‑temperature, over‑voltage, overload, open‑loop, and VCC undervoltage conditions.
What is the standby power consumption of the CoolSET‑F3?
The device achieves standby power below 100 mW in active‑burst mode with no load.
Which protection features are included in the controller?
It provides Auto Restart Mode for over‑voltage detection, overload, open‑loop, and VCC undervoltage conditions.
