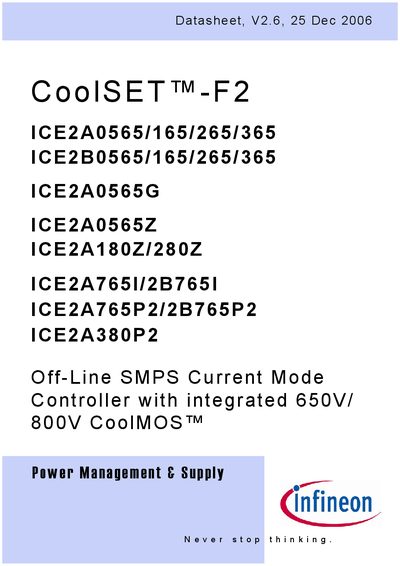

INFINEON ICE2A0565/165/265/365 ICE2B0565/165/265/365 ICE2A0565G ICE2A0565Z ICE2A180Z/280Z ICE2A765I/2B765I ICE2A765P2/2B765P2 ICE2A380P2 Manual
The ICE2 series from Infineon provides off‑line SMPS current‑mode controllers with integrated 650 V/800 V CoolMOS™ devices. The family includes multiple variants (e.g., ICE2A0565, ICE2A165, ICE2A265, ICE2A365, ICE2B0565, ICE2A380P2) offered in DIP, TO‑220 and DSO packages. Key features are low standby power, auto‑restart protection, adjustable peak‑current limitation and a soft‑start function.
The datasheet details pin configurations for each package, functional block diagrams, electrical characteristics, and layout recommendations. It also lists typical performance data such as switching frequency, voltage ratings and power dissipation for each model.
Infineon ICE2A0565G specifications
| Maximum switching frequency | 100 kHz (ICE2A0565, ICE2A165, ICE2A265, ICE2A365) |
|---|---|
| Voltage rating | 650 V (ICE2A0565, ICE2A165, ICE2A265, ICE2A365) / 800 V (ICE2A180Z, ICE2A280Z, ICE2A380P2) |
| Supply voltage range (VCC) | 8.5 V to 21 V |
