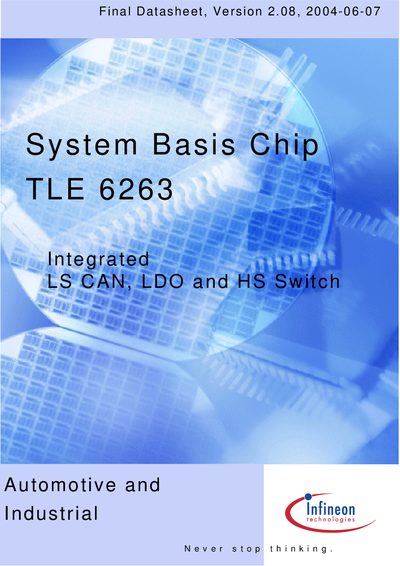

Infineon TLE6263 CAN‑LDO‑ASIC Datasheet
The TLE6263 is a monolithic integrated circuit in an enhanced‑power P‑DSO‑28‑18 package, optimized for automotive electronic control units. It combines a low‑speed differential CAN transceiver, a low‑dropout 5 V regulator, and an SPI interface for monitoring and control.
Key features include a high‑side switch, two wake‑up inputs, a window watchdog with fail‑safe output, early‑warning and sense‑comparator inputs, and a standard 8‑bit SPI interface. The device operates over a wide voltage and temperature range and supports multiple operation modes such as normal, receive‑only, standby and sleep.
Infineon TLE 6263 specifications
| CAN data transmission rate | up to 125 kBaud |
|---|---|
| Low‑dropout regulator voltage | 5 V |
| Number of wake‑up inputs | 2 |
| Watchdog type | Window watchdog with fail‑safe output |
| High‑side switch | Integrated |
| Input voltage range | Wide |
| Operating temperature range | Wide |
All Infineon TLE 6263 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum CAN data transmission rate of the TLE6263?
The TLE6263 supports CAN data transmission rates up to 125 kBaud.
How many wake‑up inputs does the TLE6263 provide?
The device provides two wake‑up inputs (WK1 and WK2).
What is the maximum CAN data rate supported by the TLE 6263?
The device supports CAN data transmission rates up to 125 kBaud.
How much current can the integrated LDO supply?
The low‑dropout regulator can deliver up to 110 mA.
