Start here

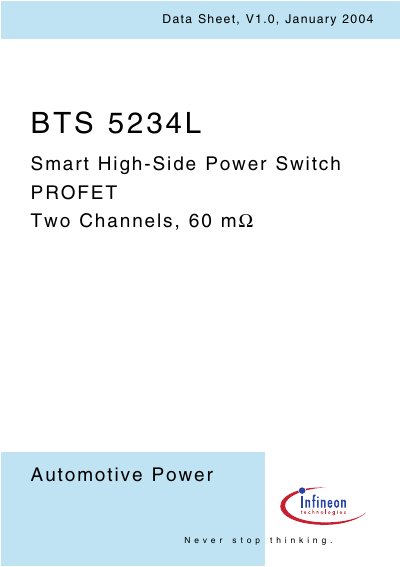

Infineon BTS 5234L Smart High-Side Power Switch Data Sheet
The BTS 5234L is a dual‑channel high‑side power switch in a P‑DSO‑12‑2 package, offering low standby current, CMOS‑compatible logic pins, and built‑in protective functions. It integrates an N‑channel vertical MOSFET with a charge pump and provides diagnostic signals via IntelliSense pins.
Key protection functions include reverse battery protection, short‑circuit protection, overload protection, multi‑step current limitation, thermal shutdown/restart, over‑voltage protection, loss‑of‑ground protection, and ESD protection. Diagnostic features give load‑current sense and open‑load detection for both ON and OFF states.
Infineon BTS 5234L specifications
| On‑State resistance RDS(ON) | 60 mΩ |
|---|---|
| Nominal load current (one channel active) IL(nom) | 3.5 A |
| Current limitation IL(LIM) | 23 A |
| Operating voltage Vbb(on) | 4.5‑8 V |
Source: Infineon BTS 5234L Smart High-Side Power Switch Data Sheet
All Infineon BTS 5234L documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
How many channels does the BTS 5234L have?
The device is a dual‑channel high‑side power switch.
From: Infineon BTS 5234L Smart High-Side Power Switch Data Sheet
What are the voltage ranges for the logic input pins?
Input pins accept voltages from –5 V to +10 V, and the sense‑enable pin also operates within –5 V to +10 V.
From: Infineon BTS 5234L Smart High-Side Power Switch Data Sheet
How many channels does the BTS 5234L have and what is the on‑state resistance per channel?
The device is a dual‑channel high‑side power switch, with each channel having an on‑state resistance of 60 mΩ.
From: Infineon BTS 5234L Smart High-Side Power Switch Datasheet
