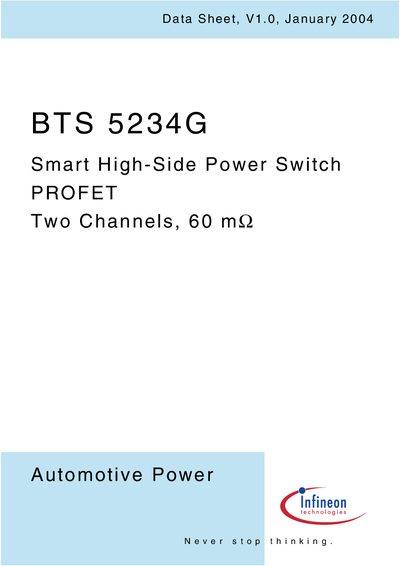

Infineon BTS 5234G Smart High-Side Power Switch Datasheet
The BTS 5234G is a dual‑channel high‑side power switch in a P‑DSO‑20‑21 package that integrates protective functions such as reverse‑battery, overload, and over‑voltage protection. It uses a N‑channel vertical MOSFET with a charge pump and CMOS‑compatible logic pins.
Key features include very low standby current, 3.3 V/5 V compatible logic pins, and diagnostic signals (IS1, IS2, SEN) for current‑sense and open‑load detection. The datasheet lists electrical characteristics, pin assignments, and application guidance for resistive, inductive, and capacitive loads.
Infineon BTS5234G specifications
| Operating voltage (Vop) | 4.5 V – 28 V |
|---|---|
| Over‑voltage protection (Vop(az)) | 41 V |
| Nominal load current (one channel active) | 3.3 A |
| Standby current (Ibb OFF) | 2.5 µA |
| Current limitation (Tim) | 23 A |
| Current limitation repetitive (scr) | 6 A |
| Maximum supply voltage (Vob) | 28 V |
| Power dissipation (DC) (Prot) | 14 W |
| Input pin voltage (Vin) | 5 V – 10 V |
| Input pin current (lin) | -2.0 mA – 2.0 mA |
Source: Infineon BTS 5234G Smart High-Side Power Switch Datasheet
All Infineon BTS5234G documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What protective functions does the BTS 5234G provide?
It includes reverse‑battery protection, short‑circuit protection, overload protection, multi‑step current limitation, thermal shutdown, thermal restart, over‑voltage protection, loss‑of‑ground protection, and ESD protection.
From: Infineon BTS 5234G Smart High-Side Power Switch Datasheet
How many channels does the BTS 5234G have and what is its on‑state resistance?
The device is a dual‑channel switch with an on‑state resistance of 60 mΩ per channel.
From: Infineon BTS 5234G Smart High-Side Power Switch Datasheet
What is the operating voltage range of the BTS5234G?
The device operates from 4.5 V up to 28 V.
From: Infineon BTS5234G Smart High-Side Power Switch Datasheet
Which protective functions are integrated in the BTS5234G?
It includes reverse‑battery protection, short‑circuit protection, overload protection, multi‑step current limitation, thermal shutdown with restart, over‑voltage protection, loss‑of‑ground protection, and ESD protection.
From: Infineon BTS5234G Smart High-Side Power Switch Datasheet
