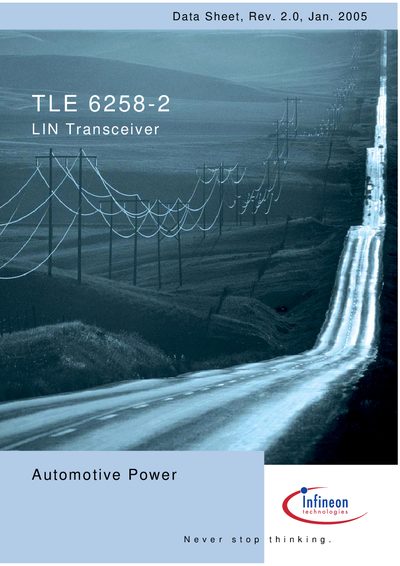

Infineon TLE 6258-2 LIN Transceiver Datasheet
Datasheet 15 pages · 221 KB · EN
The TLE 6258-2 is a single‑wire LIN transceiver offered in a P‑DSO‑8‑3 package. It provides a LIN protocol interface with low standby current, wake‑up capability and protection against short circuits and over‑temperature.
The document details pin definitions, functional block diagram, absolute maximum ratings, operating ranges, electrical characteristics, recommended external components and package dimensions for automotive and industrial applications.
Infineon TLE 6258-2 specifications
| Supply voltage (Voc) range | 4.5 V – 5.5 V |
|---|---|
| Battery supply voltage (Vg) range | 6 V – 35 V |
| Transmission rate | up to 20 kBaud |
| Package type | P‑DSO‑8‑3 |
All Infineon TLE 6258-2 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum transmission rate of the TLE 6258-2?
The transceiver supports a transmission rate of up to 20 kBaud.
What are the absolute maximum ratings for the supply voltages?
The supply voltage (Vee) may not exceed 6 V, and the battery supply voltage (Vg) may not exceed 40 V.
What is the maximum transmission rate of the TLE 6258-2?
The device supports a transmission rate of up to 20 kBaud.
