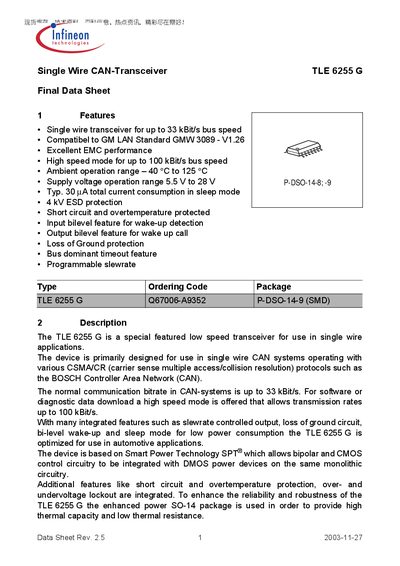

Infineon TLE 6255 G Single Wire CAN Transceiver Final Data Sheet
The TLE 6255 G is a low‑speed single‑wire CAN transceiver designed for automotive applications. It supports a normal bus speed of up to 33 kBit/s and a high‑speed mode of up to 100 kBit/s for software or diagnostic data download. The device includes integrated features such as slew‑rate control, loss‑of‑ground protection, bi‑level wake‑up detection, and a sleep mode with typical 30 µA current consumption.
The transceiver operates from a 5.5 V to 28 V supply, offers 4 kV ESD protection, and provides short‑circuit and over‑temperature protection. Pin functions, block diagram, and absolute maximum ratings are detailed in the data sheet, along with package outlines for the P‑DSO‑14‑9 SMD package.
Infineon TLE 6255 G specifications
| Normal bus speed | up to 33 kBit/s |
|---|---|
| High‑speed mode bus speed | up to 100 kBit/s |
| Supply voltage range | 5.5 V to 28 V |
| ESD protection | 4 kV |
| Unit load resistance (GMW 3089 V1.26) | 8.999 kΩ to 9.126 kΩ |
Source: Infineon TLE 6255 G Single Wire CAN Transceiver Final Data Sheet
