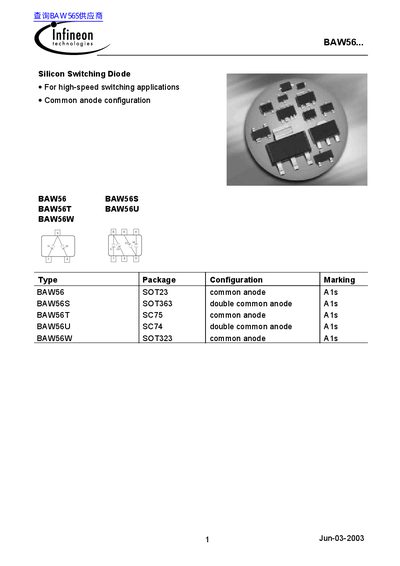

Infineon BAW56 Silicon Switching Diode Datasheet
Datasheet 8 pages · 126 KB · EN
This document is a technical datasheet for the Infineon Technologies AG BAW56 series of Silicon Switching Diodes. It details various package configurations including SOT23, SOT363, SC75, SC74, and SOT323.
The datasheet provides comprehensive electrical specifications such as a maximum reverse voltage (VR) of 80 V and a peak reverse voltage (VRRM) of 85 V. It also lists forward current capabilities up to 200 mA and surge currents up to 45 A, along with junction temperature limits.
Infineon BAW56 specifications
| Diode reverse voltage (VR) | 80 V |
|---|---|
| Peak reverse voltage (VRRM) | 85 V |
| Forward current (IF) | 200 mA |
| Surge forward current | 45 A |
| Junction temperature (Tj) | 150 °C |
| Reverse recovery time (trr) | 4 ns |
