Start here

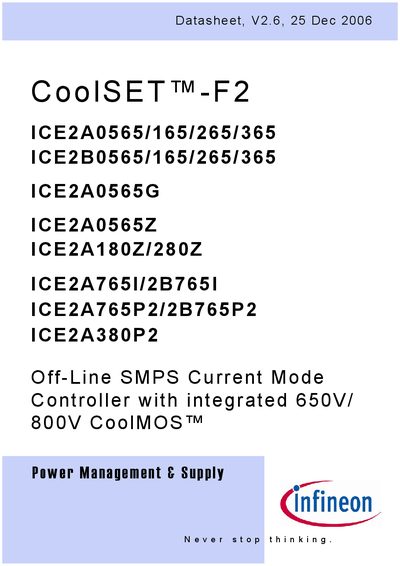

Infineon CoolSET-F2 Datasheet
The CoolSET‑F2 is an off‑line SMPS current‑mode controller with integrated 650 V/800 V CoolMOS™ devices. It is offered in several packages (DIP‑8, DIP‑7, TO‑220, DSO‑16/12) and features low standby power, auto‑restart protection, and adjustable peak‑current limitation.
The document includes pin configurations, functional descriptions, electrical characteristics, typical performance curves, layout recommendations, and mechanical dimensions, helping designers integrate the controller into low‑power standby and high‑efficiency power‑supply designs.
Infineon CoolSET-F2 specifications
| Package | P‑DIP‑8‑6 |
|---|---|
| Input Voltage Rating | 650 V / 800 V |
| Switching Frequency | 100 kHz |
| Maximum Duty Cycle | 72 % |
| Standby Current Consumption | max 55 µA |
| Current Limiting Tolerance | < +5 % |
Source: infineon CoolSET -F2 ICE2A165/265/365 ICE2A180/280 Manual
All Infineon CoolSET-F2 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- Infineon CoolSET-F2 Datasheet 36 p
- infineon CoolSET -F2 ICE2A165/265/365 ICE2A180/280 Manual 23 p
- infineon CoolSET -F2 ICE2A0565/165/265/365 ICE2B0565/165/265/365 ICE2A0565G ICE2A0565Z ICE2A180Z/280Z ICE2A765I/2B765I ICE2A765P2/2B765P2 ICE2A380P2 Off-Line SMPS Current Mode Controller with integra 36 p
- infineon CoolSET -F2 ICE2A0565/165/265/365 ICE2B0565/165/265/365 ICE2A0565G ICE2A0565Z ICE2A180Z/280Z ICE2A765I/2B765I ICE2A765P2/2B765P2 ICE2A380P2 Off-Line SMPS Current Mode Controller 36 p
Questions answered in these manuals
What package type does the CoolSET‑F2 use?
It uses a plastic dual in‑line package (P‑DIP‑8‑6).
From: infineon CoolSET -F2 ICE2A165/265/365 ICE2A180/280 Manual
What is the maximum switching frequency?
The controller operates at a switching frequency of 100 kHz.
From: infineon CoolSET -F2 ICE2A165/265/365 ICE2A180/280 Manual
What is the supply voltage range for the VCC pin?
The VCC pin operates from 8.5 V up to 21 V.
