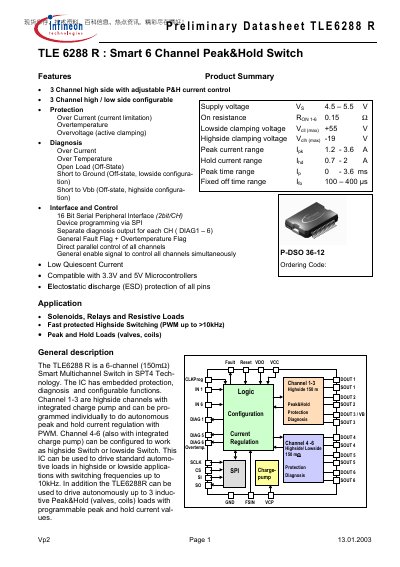

Infineon TLE6288 R Smart 6‑Channel Peak‑Hold Switch Datasheet
The TLE6288 R is a 6‑channel (150 mΩ) Smart Multichannel Switch built with SPT4 technology. It offers three high‑side channels with charge‑pump‑enabled peak‑and‑hold current control and three configurable channels that can operate as either high‑side or low‑side switches. The device supports 3.3 V and 5 V microcontrollers via a 16‑bit SPI interface and includes extensive protection features such as over‑current, over‑temperature, over‑voltage and ESD protection.
Typical applications include solenoids, relays, valves and other inductive loads that require peak‑and‑hold current regulation up to 10 kHz switching frequency. The datasheet provides detailed pin descriptions, electrical characteristics, maximum ratings, and timing diagrams for designers.
Infineon TLE6288R specifications
| Peak current range | 1.2 – 3.6 A |
|---|---|
| Hold current range | 0.7 – 2 A |
| Peak time range | 0.8 – 3.6 ms |
| Fixed off‑time range | 100 – 400 µs |
Source: Infineon TLE6288 R Smart 6‑Channel Peak‑Hold Switch Datasheet
All Infineon TLE6288R documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
How many channels can be configured as high‑side or low‑side?
Channels 4‑6 are configurable as either high‑side or low‑side switches.
From: Infineon TLE6288 R Smart 6‑Channel Peak‑Hold Switch Datasheet
What interface is used to program the device?
The TLE6288 R is programmed via a 16‑bit SPI serial peripheral interface.
From: Infineon TLE6288 R Smart 6‑Channel Peak‑Hold Switch Datasheet
What supply voltage does the TLE6288R require?
The device operates from a 4.5 V to 5.5 V supply.
From: Infineon TLE6288R Smart 6 Channel Peak&Hold Switch Datasheet
How many channels does the TLE6288R have?
It provides six independent channels.
From: Infineon TLE6288R Smart 6 Channel Peak&Hold Switch Datasheet
