Start here

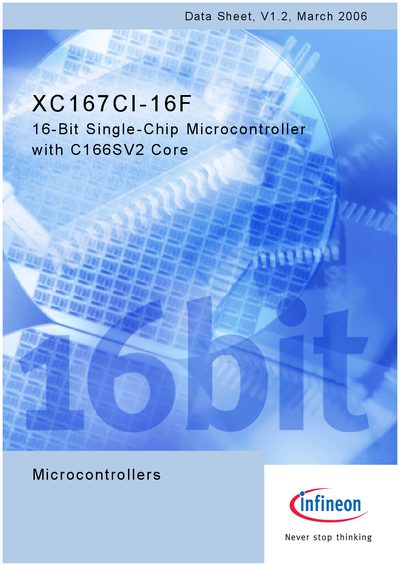

infineon XC167CI-16F 16-Bit Single-Chip Microcontroller with C166SV2 Core
The XC167CI-16F is a 16‑bit single‑chip microcontroller based on the C166SV2 core. It offers a high‑performance CPU, up to 128 KB of on‑chip flash, multiple on‑chip RAM modules, a 16‑channel A/D converter, and a 16‑priority‑level interrupt system with 77 sources.
The datasheet details functional blocks, electrical parameters, package options, and ordering information. It also includes reliability data such as flash memory retention time and endurance specifications.
Infineon C166SV2 specifications
| Instruction cycle time | 25 ns at 40 MHz |
|---|---|
| Flash memory size | 128 KB |
| On‑chip RAM (DPRAM) | 2 KB |
| A/D converter resolution | 10‑bit (or 8‑bit programmable) |
| Interrupt sources | 77 sources |
| Package type | 144‑Pin TQFP, 0.5 mm pitch |
Source: infineon XC167CI-16F 16-Bit Single-Chip Microcontroller with C166SV2 Core
All Infineon C166SV2 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- infineon XC167CI-16F 16-Bit Single-Chip Microcontroller with C166SV2 Core 89 p
- INFINEON XC164LM 16-Bit Single-Chip Micro controller with C166SV2 Core Manual 61 p
- INFINEON - Data Sheet V1.2 March 2007 Microcontrollers XC164TM 16-Bit Single-Chip Microcontroller with C166SV2 Core Manual 66 p
- Infineon XC164CM 16-bit Single-Chip Microcontroller with C166SV2 Core Datasheet 69 p
Questions answered in these manuals
What is the flash memory size of the XC167CI-16F?
The XC167CI-16F includes 128 KB of on‑chip flash memory.
From: infineon XC167CI-16F 16-Bit Single-Chip Microcontroller with C166SV2 Core
How many interrupt sources does the XC167CI-16F support?
It provides a 16‑priority‑level interrupt system with 77 sources.
From: infineon XC167CI-16F 16-Bit Single-Chip Microcontroller with C166SV2 Core
What is the instruction cycle time of the XC164LM at 40 MHz?
The instruction cycle time is 25 ns when the CPU runs at a 40 MHz clock.
From: INFINEON XC164LM 16-Bit Single-Chip Micro controller with C166SV2 Core Manual
How much on‑chip Flash memory does the XC164LM provide?
It offers 32 KB, 64 KB, or 128 KB of on‑chip Flash memory depending on the derivative.
From: INFINEON XC164LM 16-Bit Single-Chip Micro controller with C166SV2 Core Manual
What is the instruction cycle time at a 40 MHz CPU clock?
The instruction cycle time is 25 ns at a 40 MHz CPU clock.
How much flash memory is available on the XC164TM?
The device provides up to 128 KB of on‑chip flash memory.
