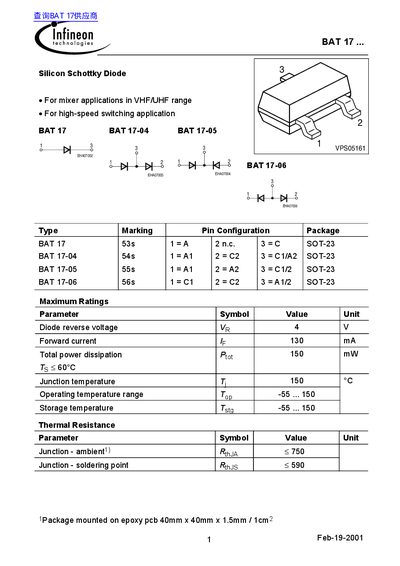

Infineon BAT 17... Silicon Schottky Diode Datasheet
This document is a technical datasheet for the Infineon Technologies BAT 17 series of Silicon Schottky Diodes. The product line includes specific variants (BAT 17, BAT 17-04, BAT 17-05, BAT 17-06) intended for mixer applications in the VHF/UHF range and high-speed switching applications.
The datasheet provides detailed electrical characteristics, including DC parameters such as breakdown voltage, reverse current, and forward voltage at various currents. It also lists AC characteristics like diode capacitance and forward resistance. Maximum ratings are specified for reverse voltage (4V), forward current (130 mA), and power dissipation (150 mW). The components are available in the SOT-23 package.
Infineon BAT17 specifications
| Product Type | Silicon Schottky Diode |
|---|---|
| Diode reverse voltage (Vr) | 4 V |
| Forward current (If) | 130 mA |
| Total power dissipation (Prot) | 150 mW |
| Junction temperature (Tj) | 150 °C |
| Operating temperature range (Top) | -55 ... 150 |
All Infineon BAT17 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum reverse voltage rating?
The maximum diode reverse voltage (Vr) is rated at 4 V.
What is the maximum forward current for this diode?
The maximum forward current rating is 130 mA.
What are the applications for the BAT17 series?
The diodes are designed for mixer applications in VHF/UHF range and high-speed switching applications.
What is the maximum operating temperature?
The maximum operating temperature (Top) is 125°C, with a storage temperature range up to 150°C.
