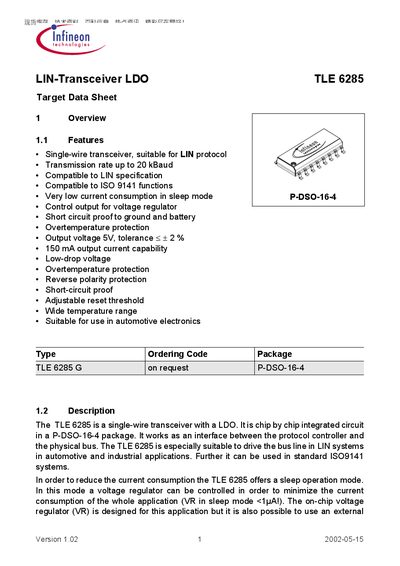

Infineon TLE6285 LIN-Transceiver LDO Datasheet
The TLE6285 LIN‑Transceiver LDO combines a single‑wire LIN interface with an on‑chip low‑dropout regulator. It is designed for automotive and industrial applications, providing low sleep‑mode current, short‑circuit and over‑temperature protection, and an adjustable reset threshold.
The device is supplied in a P‑DSO‑16‑4 package and includes features such as a 30 kΩ pull‑up resistor, reverse‑polarity protection, and a watchdog‑controlled voltage regulator that operates from 5.5 V to 45 V input.
Infineon TLE6285 specifications
| Output voltage | 5 V, tolerance < +2 % |
|---|---|
| Maximum output current | 150 mA |
| Input voltage range | 5.5 V – 45 V |
| Operating temperature range | -40 °C to 150 °C |
| Reset threshold | Typical 4.6 V, adjustable down to 3.5 V |
| Package | P‑DSO‑16‑4 |
| Pull‑up resistor on LIN bus | 30 kΩ |
