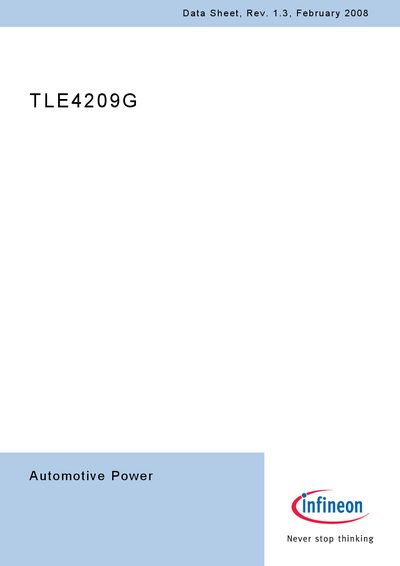

Infineon TLE4209G Automotive Power Driver Datasheet
The TLE4209G is a protected H‑bridge driver designed for automotive manual headlight beam control and industrial servo applications with DC‑brush motor loads. It offers up to 0.7 A continuous output, low saturation voltage, and built‑in protection such as short‑circuit, over‑temperature, and over/under‑voltage lockout.
The datasheet details the pin assignments, absolute maximum ratings, operating ranges, thermal resistance, and electrical characteristics. It also lists the PG‑DSO‑14‑22 SMD package, RoHS compliance, and revision history for the device.
Infineon TLE4209 specifications
| Supply voltage range | 8 V – 18 V |
|---|---|
| Continuous output current | 0.7 A |
| Typical saturation voltage | 1.6 V |
| Thermal resistance (junction to ambient) typical | 130 K/W |
| Package | PG‑DSO‑14‑22 |
| Operating temperature range | -40 °C – +150 °C |
| Input current range (FB, REF, RANGE, HYST) | -2 mA – 2 mA |
All Infineon TLE4209 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the supply voltage range for the TLE4209G?
The device operates with a supply voltage between 8 V and 18 V.
What is the typical saturation voltage of the TLE4209G?
The typical saturation voltage is 1.6 V at 25 °C.
What is the maximum output current of the TLE4209?
The driver can deliver up to 0.8 A per output channel.
In which package is the TLE4209 available?
The TLE4209 is supplied in a P‑DIP‑8‑4 (plastic dual in‑line) package.
What is the maximum output current of the TLE4209?
The driver can deliver up to 0.8 A of output current.
Which package does the TLE4209 use?
It is supplied in a P‑DIP‑8‑4 plastic dual‑in‑line package.
