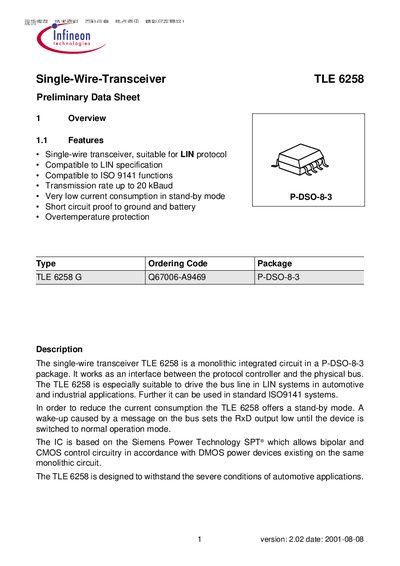

Infineon TLE 6258 Single-Wire Transceiver Datasheet
The TLE 6258 is a single‑wire transceiver designed for LIN and ISO 9141 protocols, offering low standby current, short‑circuit protection and over‑temperature protection. It is supplied in a P‑DSO‑8‑3 plastic dual‑small‑outline package and is intended for automotive and industrial applications.
The document provides a detailed overview of features, pin configuration, functional block diagram, application information, electrical characteristics, and package dimensions, along with absolute maximum ratings and recommended external components for reliable operation.
Infineon TLE 6258 specifications
| Supply voltage (Voc) range | 4.5 V – 5.5 V |
|---|---|
| Battery supply voltage (Vs) range | 6 V – 20 V |
| Transmission rate | up to 20 kBaud |
| Stand‑by mode current consumption | 20 – 30 pA |
| Package type | P‑DSO‑8‑3 |
All Infineon TLE 6258 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum transmission rate of the TLE 6258?
The device supports a transmission rate of up to 20 kBaud.
Which package does the TLE 6258 use?
It is supplied in a P‑DSO‑8‑3 plastic dual‑small‑outline package.
What is the maximum transmission rate of the TLE 6258-2?
The transceiver supports a transmission rate of up to 20 kBaud.
What are the absolute maximum ratings for the supply voltages?
The supply voltage (Vee) may not exceed 6 V, and the battery supply voltage (Vg) may not exceed 40 V.
What is the maximum transmission rate of the TLE 6258-2?
The device supports a transmission rate of up to 20 kBaud.
What is the maximum transmission rate of the TLE 6258?
The device supports a transmission rate of up to 20 kBaud.
From: Infineon TLE 6258 Single-Wire Transceiver Preliminary Data Sheet
