Start here

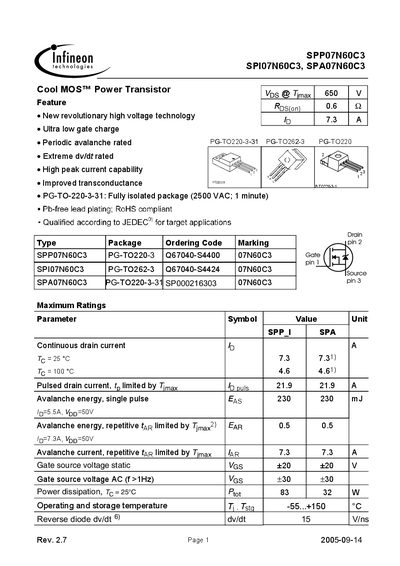

INFINEON SPP07N60C3 SPI07N60C3 SPA07N60C3 Manual
The SPP07N60C3 is a Cool MOS™ power transistor from Infineon, offering 650 V drain‑source voltage and ultra‑low gate charge for high‑efficiency switching. It is available in PG‑TO‑220‑3 and PG‑TO‑262‑3 packages with RoHS‑compliant, lead‑free construction.
Key specifications include a continuous drain current of 7.3 A, a maximum power dissipation of 83 W (junction‑to‑case thermal resistance 1.5 K/W), and detailed transient thermal impedance data. The datasheet also lists switching times, gate charge values, and safe operating area curves for both standard and FullPAK packages.
Infineon SPI07N60C3 specifications
| Continuous drain current (Id) | 7.3 A |
|---|---|
| Avalanche energy (single pulse) | 230 mJ |
| Package | PG‑TO220‑3 |
All Infineon SPI07N60C3 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum continuous drain current of the SPP07N60C3?
The device can conduct a continuous drain current of 7.3 A at a case temperature of 25 °C.
What avalanche energy rating does the SPP07N60C3 have?
It is rated for a single‑pulse avalanche energy of 230 mJ.
