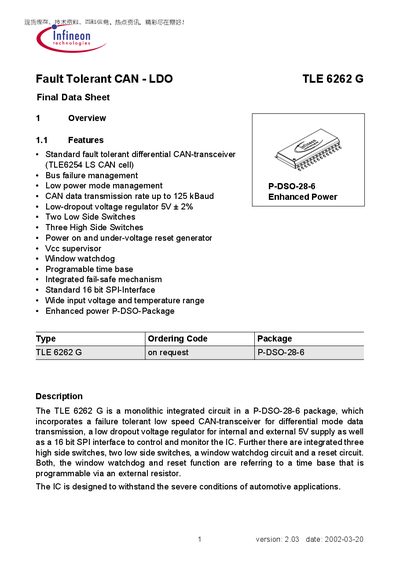

Infineon TLE 6262 G Fault Tolerant CAN LDO Datasheet
The TLE 6262 G combines a fault‑tolerant CAN‑transceiver, a low‑dropout 5 V regulator and a 16‑bit SPI interface. It includes three high‑side switches, two low‑side switches, a programmable window watchdog and reset circuitry, all designed for automotive environments.
The device is supplied in a P‑DSO‑28‑6 enhanced‑power package and can drive external 5 V loads up to 45 mA. Recommended output capacitance is 100 nF for stability, with 10 µF advised for applications requiring larger buffering.
Infineon TLE6262G specifications
| CAN data transmission rate | up to 125 kBaud |
|---|---|
| LDO output voltage | 5 V ±2 % |
| Maximum external load current | 45 mA |
| Package type | P‑DSO‑28‑6 (plastic dual small outline) |
| Number of high‑side switches | 3 |
| Number of low‑side switches | 2 |
Source: Infineon TLE 6262 G Fault Tolerant CAN LDO Datasheet
All Infineon TLE6262G documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum CAN data rate supported by the TLE 6262 G?
It supports CAN data transmission rates up to 125 kBaud.
How much current can the integrated LDO supply to external 5 V loads?
The LDO can drive external 5 V loads up to 45 mA.
What is the maximum CAN data rate supported by the TLE6262G?
The device supports CAN data transmission rates up to 125 kBaud.
How many high‑side and low‑side switches are integrated?
The IC includes three high‑side switches and two low‑side switches.
