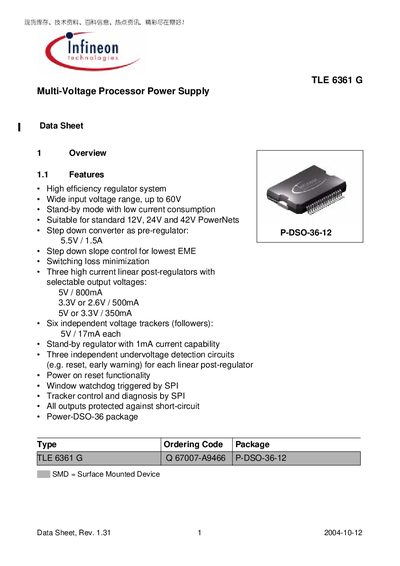

Infineon TLE 6361 G Multi-Voltage Processor Power Supply Data Sheet
The TLE 6361 G is a multi‑voltage power‑supply system designed for automotive 12 V, 24 V and 42 V power‑nets. It integrates a buck converter, three linear post‑regulators, six voltage trackers and a standby regulator on a single P‑DSO‑36‑12 package.
The device provides selectable output rails (5 V, 3.3 V, 2.6 V) with current capabilities up to 800 mA, a pre‑regulated 5.5 V/1.5 A buck output, and SPI‑controlled trackers and diagnostics, making it suitable for 32‑bit micro‑controller systems in harsh automotive environments.
Infineon TLE 6361 G specifications
| Input voltage range | up to 60 V |
|---|---|
| Pre‑regulator output | 5.5 V / 1.5 A |
| Linear post‑regulator 1 output | 5 V / 800 mA |
| Linear post‑regulator 2 output | 3.3 V / 500 mA |
| Linear post‑regulator 3 output | 2.6 V / 350 mA |
| Voltage trackers (followers) | 6 × 5 V / 17 mA each |
| Stand‑by regulator current | 1 mA |
| Undervoltage detection circuits | Three independent circuits |
Source: Infineon TLE 6361 G Multi-Voltage Processor Power Supply Data Sheet
All Infineon TLE 6361 G documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum input voltage for the TLE 6361 G?
The device accepts an input voltage range up to 60 V.
From: Infineon TLE 6361 G Multi-Voltage Processor Power Supply Data Sheet
How many voltage trackers does the TLE 6361 G provide?
It provides six independent voltage trackers, each capable of 5 V at 17 mA.
From: Infineon TLE 6361 G Multi-Voltage Processor Power Supply Data Sheet
What input voltage range does the TLE 6361 G support?
It accepts a wide input voltage range up to 60 V.
From: Infineon TLE 6361 G Multi-Voltage Processor Power Supply Datasheet
How many voltage tracker outputs are provided and what is their current capability?
The device provides six independent voltage trackers, each delivering 5 V at up to 17 mA.
From: Infineon TLE 6361 G Multi-Voltage Processor Power Supply Datasheet
