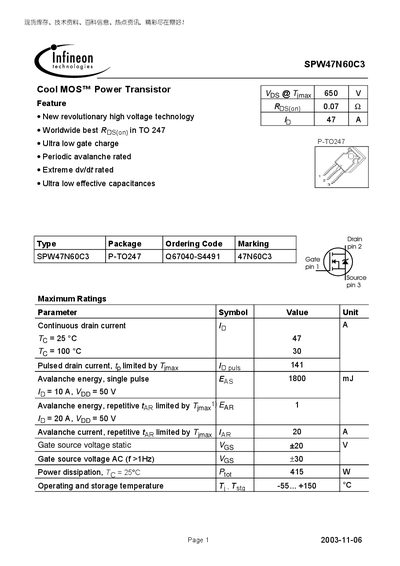

Infineon SPW47N60C3 Cool MOS Power Transistor Datasheet
Datasheet 13 pages · 248 KB · EN
The SPW47N60C3 is a Cool MOS™ power transistor in a P‑TO247 package, offering 650 V rating and ultra‑low gate charge. The document provides maximum ratings, thermal characteristics, and detailed electrical parameters for design engineers.
Key sections cover maximum ratings, thermal resistance, input/output capacitances, on‑state resistance, gate‑charge curves, and switching performance, along with package dimensions and safety notices.
Infineon SPW47N60C3 specifications
| Gate‑Source Voltage (Static) | +20 V |
|---|---|
| Power Dissipation (25 °C) | 415 W |
| Operating Temperature Range | -55 °C to +150 °C |
| Avalanche Energy (single pulse) | 1800 mJ |
All Infineon SPW47N60C3 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum power dissipation at 25 °C?
The transistor can dissipate up to 415 W at an ambient temperature of 25 °C.
