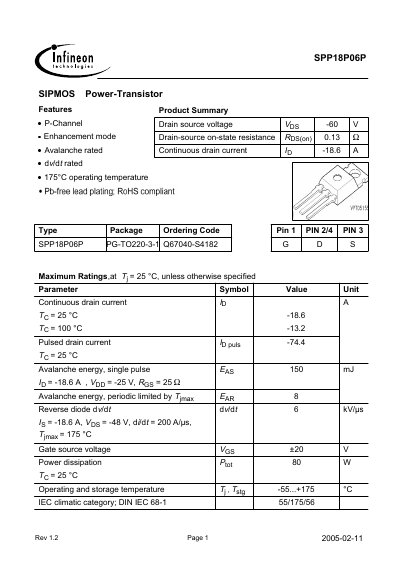

Infineon SPP18P06P Power Transistor Datasheet
The SPP18P06P is a P‑channel enhancement‑mode power transistor with a -60 V drain‑source rating and a continuous drain current of -18.6 A. It features low on‑state resistance, avalanche and dv/dt robustness, and operates from -55 °C to +175 °C.
The document provides detailed electrical, thermal, and dynamic parameters, including typical RDS(on) values, gate charge characteristics, avalanche energy, and safe operating area curves, along with mechanical dimensions and package information. This manual is written in Chinese.
Infineon SPP18P06P specifications
| Drain‑source voltage (VDS) | -60 V |
|---|---|
| Continuous drain current (ID) | -18.6 A |
| On‑state resistance (RDS(on)) | 0.13 mΩ (typ) |
| Gate‑source voltage (VGS) rating | ±20 V |
| Power dissipation (Ptot) at 25 °C | 80 W |
| Operating temperature range | -55 °C to +175 °C |
