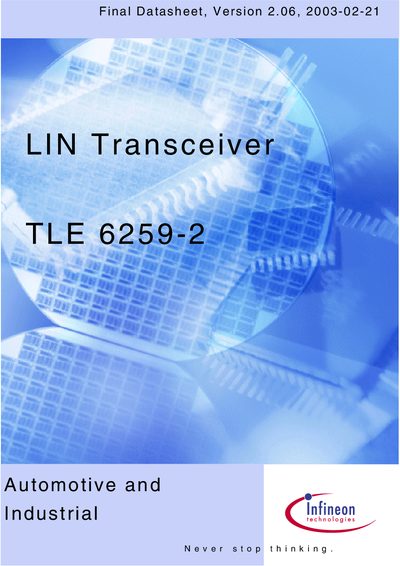

Infineon TLE 6259-2 Single-Wire Transceiver Datasheet
The TLE 6259-2 is a single‑wire transceiver designed for LIN protocol in automotive and industrial applications. It integrates bus interface, sleep mode, voltage‑regulator control, and protection features such as bus‑short‑to‑GND and over‑temperature shutdown.
The datasheet details pin configuration, functional block diagram, electrical characteristics, absolute maximum ratings, operating ranges, and application guidelines including master termination, external capacitors, and wake‑up behavior.
Infineon TLE 6259-2 specifications
| Transmission rate | up to 20 kBaud |
|---|---|
| Package | P-DSO-8-3 |
| Supply voltage (Vcc) max | 5.5 V |
| Battery supply voltage (Vs) max | 40 V |
| Bus input voltage (Vous) max | 32 V |
| Output current at INH | 20 mA |
| Thermal shutdown temperature (typical) | 170 °C |
Source: Infineon TLE 6259-2 Single-Wire Transceiver Datasheet
All Infineon TLE 6259-2 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the transmission rate of the TLE 6259-2?
The device supports a transmission rate of up to 20 kBaud.
How does the TLE 6259-2 protect the battery from discharge?
It includes a BUS short to GND feature that limits the resistance to less than 1 kΩ, preventing battery drain when the device is in sleep mode.
What is the maximum transmission rate of the TLE 6259-2?
The device supports a transmission rate up to 20 kBaud.
