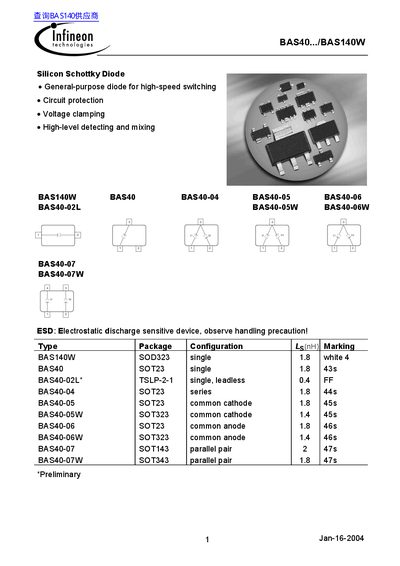

Infineon BAS40.../BAS140W Handbook
The BAS40.../BAS140W series are general‑purpose silicon Schottky diodes intended for high‑speed switching, circuit protection, voltage clamping, and high‑level detecting and mixing. Various package types are offered, including SOT‑23, SOT‑323, and SOT‑143.
Key specifications include a reverse voltage of 40 V, a forward current rating of 120 mA, and a total power dissipation of 250 mW. The devices operate from –55 °C to 125 °C, with a maximum junction temperature of 150 °C and thermal resistance values ranging from 0.4 K/W to 4.75 K/W depending on the package.
Infineon BAS40 specifications
| Reverse voltage (Ve) | 40 V |
|---|---|
| Forward current (Ir) | 120 mA |
| Operating temperature range | -55 °C to 125 °C |
All Infineon BAS40 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum reverse voltage for the BAS40 series?
The maximum reverse voltage is 40 V.
What forward current can the BAS40 diodes handle?
They are rated for a forward current of 120 mA.
What is the maximum reverse voltage of the BAS40/BAS140W diodes?
The diodes can withstand a reverse voltage of up to 40 V.
From: Infineon BAS40/BAS140W Silicon Schottky Diode Datasheet
What is the maximum continuous forward current rating?
The continuous forward current rating is 120 mA.
From: Infineon BAS40/BAS140W Silicon Schottky Diode Datasheet
