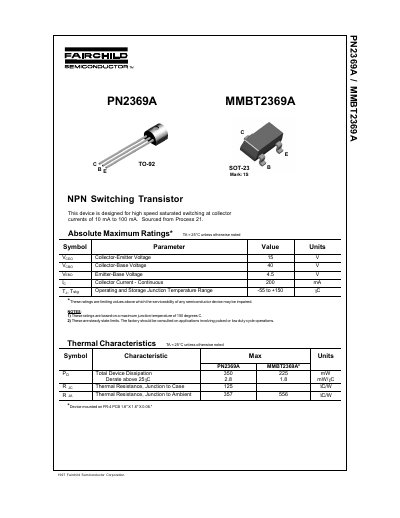

PN2369A MMBT2369A is a NPN switching transistor produced by Fairchild, suitable for saturated switching currents of 10 mA to 100 mA
The document describes the PN2369A/MMBT2369A, an NPN switching transistor designed for high-speed saturated switching at collector currents between 10 mA and 100 mA. It features a wide operating and storage junction temperature range from -55°C to +150°C. The datasheet provides absolute maximum ratings, electrical characteristics including DC current gain and switching times, and typical performance curves.
| Collector-Emitter Voltage | 15 V |
|---|---|
| Collector-Base Voltage | 40 V |
| Emitter-Base Voltage | 4.5 V |
| Collector Current - Continuous | 200 mA |
| Operating and Storage Junction Temperature Range | -55 to +150 °C |
| Thermal Resistance, Junction to Case | 125 °C/W |
The continuous collector current rating is 200 mA.
The operating and storage junction temperature range is -55 to +150 °C.
