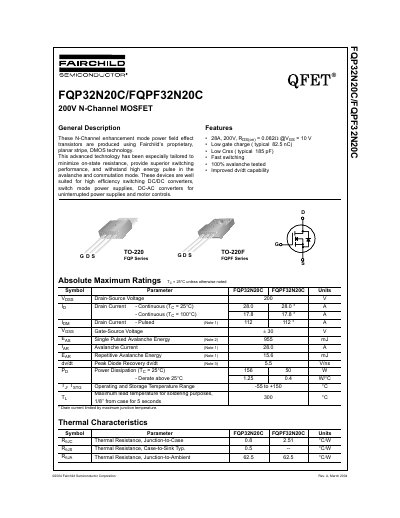

Fairchild Semiconductor FQP32N20C/FQPF32N20C 200V N-Channel MOSFET Datasheet
This document provides design specifications for the FQP32N20C and FQPF32N20C N-Channel MOSFETs. These devices utilize Fairchild's proprietary planar stripe, DMOS technology to minimize on-state resistance and provide superior switching performance. They are designed for high efficiency applications such as DC/DC converters, switch mode power supplies, and motor controls.
Read onlineFairchild FQP32N20C specifications
| Drain-Source Voltage | 200 V |
|---|---|
| Continuous Drain Current (Tc = 25°C) | 28.0 A |
| Pulsed Drain Current | 112 A |
| Gate-Source Voltage | +30 V |
| Power Dissipation (Tc = 25°C) | 156 W |
| Operating and Storage Temperature Range | -55 to +150 °C |
Source: Fairchild Semiconductor FQP32N20C/FQPF32N20C 200V N-Channel MOSFET Datasheet
All Fairchild FQP32N20C documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum single pulsed avalanche energy rating?
The device can withstand a single pulsed avalanche energy of up to 955 mJ.
From: Fairchild Semiconductor FQP32N20C/FQPF32N20C 200V N-Channel MOSFET Datasheet
What is the maximum lead temperature allowed for soldering?
The leads can be exposed to a maximum temperature of 300°C for 1/8" from the case for 5 seconds.
