Key facts
- Brand
- Fairchild
- Model
- FL6300A
- Industry
- Industrial
- Documents
- 2
- Languages
- EN
- Last added
- 2012-08-01
Start here

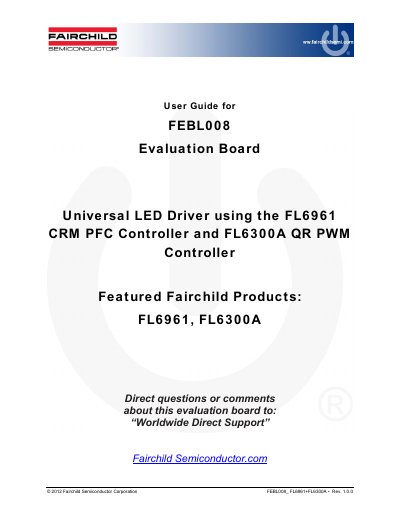

FAIRCHILD Evaluation Board User Guide Universal LED Driver using the FL6961 CRM PFC Controller FL6300A QR PWM Controller
User Manual 36 pages · 4.3 MB · EN
This document serves as a user guide for the FEBLO08 evaluation board, which demonstrates a universal LED ballast solution. The board utilizes the FL6961 CRM PFC controller and the FL6300A QR PWM controller to drive LED lighting applications.
Read onlineFairchild FL6300A specifications
| Rated Output Power | 70W |
|---|---|
| Input Voltage Range | 90VAC - 277VAC |
| Output Voltage | 24V |
| Transformer Core Type | EER3124 |
| PFC Inductor Core Type | EI2820 |
| Transformer Inductance | 500 uH |
| PFC Inductor Inductance | 450uH |
Source: Fairchild RD-L008 Reference Design for FL6961 and FL6300A
All Fairchild FL6300A documents by type
User Manual 1
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Product Leaflet 1
Questions answered in these manuals
What is the rated output power of this LED illumination reference design?
The design provides a rated output of 70W.
From: Fairchild RD-L008 Reference Design for FL6961 and FL6300A
What is the typical low start-up current for the FL6961 device?
The typical low start-up current is 10uA.
From: Fairchild RD-L008 Reference Design for FL6961 and FL6300A
What is the application of this evaluation board?
The application is for LED Lighting.
What are the main controllers used in this board?
The main controllers are the FL6961 and FL6300A.
