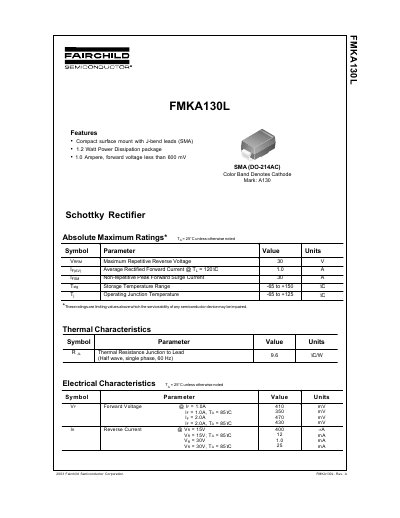

Fairchild FMKA130L Schottky Rectifier Datasheet
This document is a datasheet for the Fairchild Semiconductor FMKA130L Schottky Rectifier. It describes the device as a compact surface mount component with J-bend leads in an SMA (DO-214AC) package, featuring a color band to denote the cathode.
The text provides absolute maximum ratings and thermal characteristics, specifying a maximum repetitive reverse voltage of 30V and an average rectified forward current of 1.0A at 125°C. It also lists electrical characteristics such as forward voltage drop under various conditions.
Fairchild FMKA130 specifications
| Package Type | SMA (DO-214AC) |
|---|---|
| Power Dissipation | 1.2 Watt |
| Forward Voltage (Typical) | < 600 mV |
All Fairchild FMKA130 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum repetitive reverse voltage for the FMKA130L?
The maximum repetitive reverse voltage is 30 V.
What is the maximum repetitive reverse voltage rating?
The device has a maximum repetitive reverse voltage of 30 V.
How much forward current can the rectifier handle at 125°C?
The average rectified forward current is rated for 1.0 A at a temperature of 125°C.
