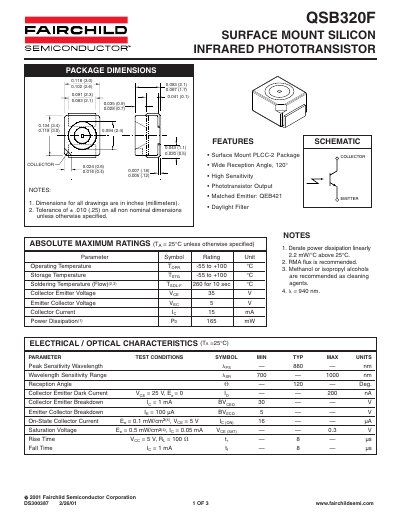

Fairchild QSB320F Infrared Phototransistor Datasheet
Datasheet 3 pages · 50 KB · EN
This document is a datasheet for the Fairchild Semiconductor QSB320F, an infrared phototransistor designed in a PLCC-2 package. The device features a wide reception angle of 120 degrees and high sensitivity to wavelengths between 700 nm and 1000 nm.
Read onlineFairchild QSB320 specifications
| Peak Sensitivity Wavelength | 880 nm |
|---|---|
| Wavelength Sensitivity Range | 700 to 1000 nm |
| Reception Angle | 120° |
| Collector Emitter Voltage (Max) | 35 V |
| Emitter Collector Voltage (Max) | 5 V |
| Collector Current (Max) | 15 mA |
| Power Dissipation (Max) | 165 mW |
Source: Fairchild QSB320F Infrared Phototransistor Datasheet
All Fairchild QSB320 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating temperature range?
The device operates from -55°C to +100°C.
Is this component suitable for life support devices?
No, Fairchild products are not authorized for use as critical components in life support devices without express written approval.
What is the peak sensitivity wavelength of the QSB320?
The peak sensitivity wavelength is 880 nm.
What is the operating temperature range?
The operating temperature range is -55 to +100 °C.
