Start here

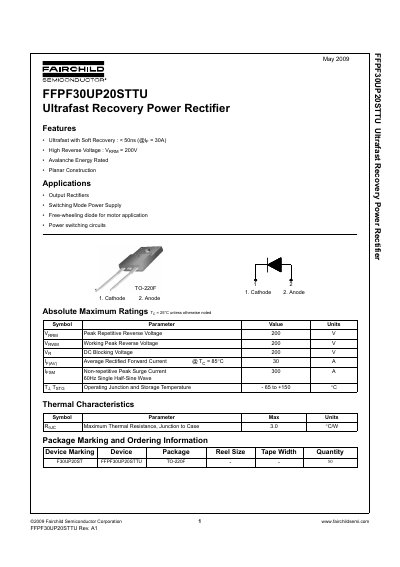

Fairchild FFPF30UP20STTU Ultrafast Recovery Power Rectifier Datasheet
This document is a technical datasheet for the Fairchild Semiconductor FFPF30UP20STTU, an Ultrafast Recovery Power Rectifier. The device features planar construction with soft recovery characteristics of less than 50ns at 30A and is rated for a peak repetitive reverse voltage of 200V.
The datasheet provides absolute maximum ratings, electrical characteristics including forward voltage drop and reverse recovery time, typical performance graphs, mechanical dimensions for the TO-220F package, and ordering information.
Fairchild FFPF30UP20S specifications
| Peak Repetitive Reverse Voltage (VRRM) | 200 V |
|---|---|
| Average Rectified Forward Current (IF(AV)) | 30 A |
| Non-repetitive Peak Surge Current (IFSM) | 300 A |
| Operating Junction and Storage Temperature Range | -65 to +150 °C |
| Maximum Thermal Resistance, Junction to Case (RθJC) | 3.0 °C/W |
| Reverse Recovery Time (trr) Typ. | 22 ns |
| Forward Voltage Drop (VF) Max. | 1.15 V |
Source: Fairchild FFPF30UP20STTU Ultrafast Recovery Power Rectifier Datasheet
All Fairchild FFPF30UP20S documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the reverse voltage rating of this rectifier?
The device has a peak repetitive reverse voltage (VRRM) and DC blocking voltage of 200 V.
From: Fairchild FFPF30UP20STTU Ultrafast Recovery Power Rectifier Datasheet
What is the average forward current rating?
The average rectified forward current (IF(AV)) at a case temperature of 85°C is rated for 30 A.
From: Fairchild FFPF30UP20STTU Ultrafast Recovery Power Rectifier Datasheet
What are the applications for the FFPF30UP20S?
The device is suitable for output rectifiers, switching mode power supplies, and as a free-wheeling diode for motor applications.
From: Fairchild Semiconductor FFPF30UP20S Ultrafast Recovery Power Rectifier Datasheet
What is the maximum operating temperature?
The operating junction and storage temperature ranges from -65 to +150 °C.
From: Fairchild Semiconductor FFPF30UP20S Ultrafast Recovery Power Rectifier Datasheet
