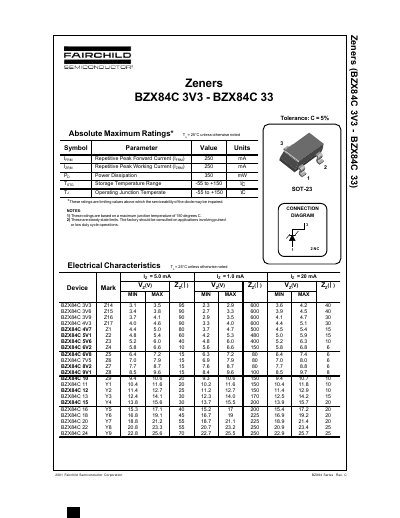

Fairchild Semiconductor BZX84C 3V3 - BZX84C 33 Zener Diode Datasheet
This document is a datasheet for the Fairchild Semiconductor BZX84C series of Zener diodes, specifically covering the voltage range from 3.3V to 33V. It provides detailed electrical characteristics, including zener voltage, impedance, and capacitance, under various test conditions such as 25°C ambient temperature.
The datasheet also lists absolute maximum ratings for parameters like repetitive peak forward current, power dissipation, and operating junction temperature. Additionally, it includes typical characteristic curves illustrating zener current versus voltage, zener voltage versus temperature, and zener voltage versus impedance for specific voltage ratings.
Fairchild BZX84C 3V3 - BZX84C 33 specifications
| Repetitive Peak Forward Current | 250 mA |
|---|---|
| Repetitive Peak Working Current | 250 mA |
| Power Dissipation | 350 mW |
| Storage Temperature Range | -55 to +150 °C |
| Operating Junction Temperature | -55 to +150 °C |
| Tolerance | 5% |
Source: Fairchild Semiconductor BZX84C 3V3 - BZX84C 33 Zener Diode Datasheet
All Fairchild BZX84C 3V3 - BZX84C 33 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum power dissipation for these diodes?
The maximum power dissipation is 350 mW.
From: Fairchild Semiconductor BZX84C 3V3 - BZX84C 33 Zener Diode Datasheet
What is the operating junction temperature range?
The operating junction temperature range is -55 to +150 °C.
From: Fairchild Semiconductor BZX84C 3V3 - BZX84C 33 Zener Diode Datasheet
What is the tolerance for the BZX84C series?
The tolerance for the BZX84C series is 5%.
What is the maximum power dissipation?
The maximum power dissipation is 350 mW.
What is the tolerance class for the BZX84C series?
The tolerance is class C, which equals 5 %.
Are Fairchild BZX84C diodes approved for use in life‑support devices?
No, Fairchild’s products are not authorized for use as critical components in life‑support devices without written approval.
