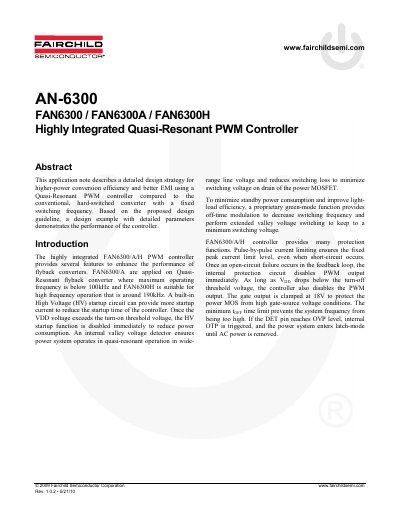

Fairchild FAN6300 Series Quasi-Resonant PWM Controller Application Note
The document describes the highly integrated FAN6300/A/H PWM controller, which enhances flyback converter performance. The FAN6300/A models are designed for Quasi-Resonant operation below 100kHz, while the FAN6300H is suitable for high-frequency operation around 190kHz. Key features include a built-in High Voltage startup circuit to reduce startup time and an internal valley voltage detector to ensure quasi-resonant operation across wide line voltages.
Read onlineFairchild FAN6300A specifications
| Operating Ambient Temperature | -40 to +125 °C |
|---|---|
| Maximum Operating Frequency (FAN6300H) | up to 190kHz |
| Maximum Operating Frequency (FAN6300A) | below 100kHz |
| Gate Output Clamping Voltage | 18V |
| Minimum Off-Time (FAN6300A) | 38us to 8us |
| Minimum Off-Time (FAN6300H) | 13us to 3us |
Source: Fairchild Semiconductor FAN6300A/FAN6300H PWM Controller Datasheet
All Fairchild FAN6300A documents by type
How to use the product for one specific task, with worked examples.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum operating frequency for FAN6300/A models?
The maximum operating frequency for these models is below 100kHz.
From: Fairchild FAN6300 Series Quasi-Resonant PWM Controller Application Note
What are the fixed turn-on and turn-off threshold voltages for VDD?
The turn-on threshold is fixed at 16V and the turn-off threshold is fixed at 10V.
From: Fairchild FAN6300 Series Quasi-Resonant PWM Controller Application Note
What is the maximum operating frequency for the FAN6300H?
The FAN6300H is suitable for high-frequency operation up to 190kHz.
From: Fairchild Semiconductor FAN6300A/FAN6300H PWM Controller Datasheet
What is the maximum operating frequency for the FAN6300A?
The FAN6300A is applied on quasi-resonant flyback converters where the maximum operating frequency is below 100kHz.
From: Fairchild Semiconductor FAN6300A/FAN6300H PWM Controller Datasheet
