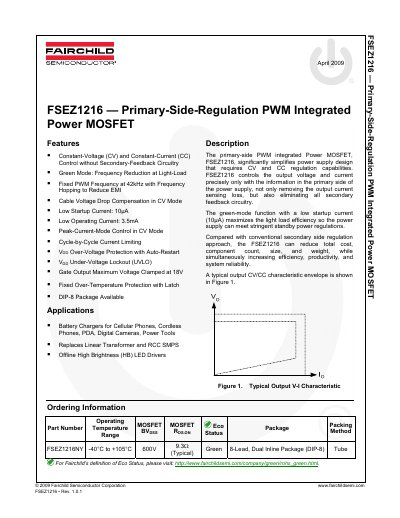

Fairchild FSEZ1216 Primary-Side-Regulation PWM Integrated Power MOSFET Datasheet
The Fairchild FSEZ1216 is a primary-side regulation PWM integrated Power MOSFET designed to simplify power supply design requiring constant-voltage (CV) and constant-current (CC) regulation. It eliminates the need for secondary-feedback circuitry, reducing component count, size, and weight while increasing efficiency and productivity. Key features include Green Mode with frequency hopping to reduce EMI, cable voltage drop compensation, and low startup and operating currents to meet standby power regulations.
Read onlineFairchild FSEZ1216 specifications
| Operating Junction Temperature | +150 °C |
|---|---|
| Storage Temperature Range | -55 to +150 °C |
| Fixed PWM Frequency | 42kHz |
| Package Type | DIP-8 |
| Operating Supply Current | 3.5mA |
Source: Fairchild FSEZ1216 Primary-Side-Regulation PWM Integrated Power MOSFET Datasheet
All Fairchild FSEZ1216 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum operating junction temperature?
The maximum operating junction temperature is +150 °C.
From: Fairchild FSEZ1216 Primary-Side-Regulation PWM Integrated Power MOSFET Datasheet
What is the typical fixed PWM frequency?
The typical fixed PWM frequency is 42kHz.
From: Fairchild FSEZ1216 Primary-Side-Regulation PWM Integrated Power MOSFET Datasheet
What is the startup current of the FSEZ1216B?
The startup current is only 10uA, which allows for large startup resistance to save power.
From: Fairchild FSEZ1216B Primary-Side-Regulation PWM Integrated Power MOSFET Datasheet
What package type is available for the FSEZ1216B?
The device is available in an 8-pin DIP package.
From: Fairchild FSEZ1216B Primary-Side-Regulation PWM Integrated Power MOSFET Datasheet
