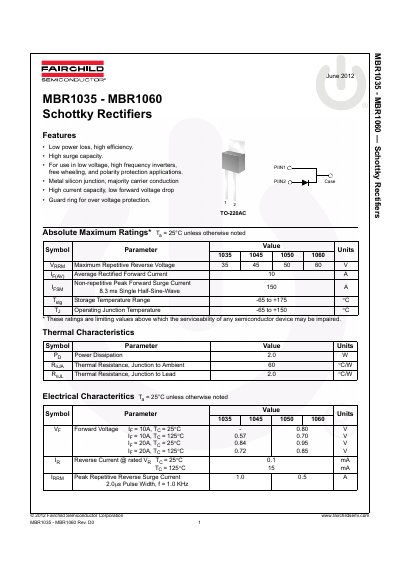

FAIRCHILD MBR1035/MBR1045/MBR1050/MBR1060 Schottky Rectifiers handbook
This document provides technical specifications for the Fairchild Semiconductor MBR1035, MBR1045, MBR1050, and MBR1060 Schottky Rectifiers. The devices are designed for low voltage, high frequency applications such as inverters, free wheeling, and polarity protection.
Read onlineFairchild MBR1035 - MBR1060 specifications
| Maximum Repetitive Reverse Voltage (VRRM) | 35, 45, 50, or 60 V |
|---|---|
| Average Rectified Forward Current (IF(AV)) | 10 A |
| Non-repetitive Peak Forward Surge Current (IFSM) | 150 A |
| Power Dissipation (Pd) | 2.0 W |
| Thermal Resistance, Junction to Ambient (RthJA) | 60 °C/W |
Source: FAIRCHILD MBR1035/MBR1045/MBR1050/MBR1060 Schottky Rectifiers handbook
All Fairchild MBR1035 - MBR1060 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the typical applications for these rectifiers?
They are intended for use in low voltage, high frequency inverters, free wheeling, and polarity protection applications.
From: FAIRCHILD MBR1035/MBR1045/MBR1050/MBR1060 Schottky Rectifiers handbook
What is the storage temperature range?
The storage temperature range is -65 to +175 °C.
From: FAIRCHILD MBR1035/MBR1045/MBR1050/MBR1060 Schottky Rectifiers handbook
What are the applications for these rectifiers?
They are intended for use in low voltage, high frequency inverters, free wheeling, and polarity protection applications.
What is the maximum forward voltage drop?
The maximum forward voltage is 0.80 V at 10 A and 25°C.
