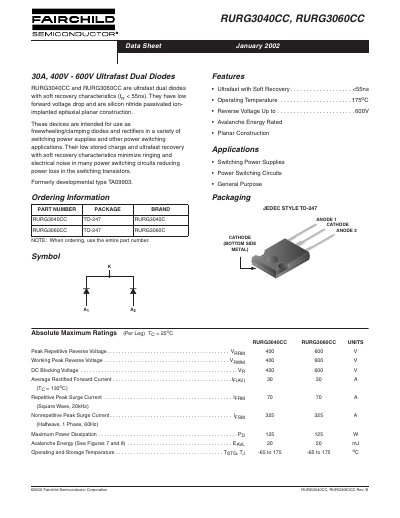

Fairchild Semiconductor RURG3040CC/RURG3060CC Ultrafast Dual Diodes Datasheet
The document describes the RURG3040CC and RURG3060CC as ultrafast dual diodes with soft recovery characteristics (trr < 55ns). These devices utilize silicon nitride passivated ion-implanted epitaxial planar construction and are intended for use as freewheeling/clamping diodes and rectifiers in switching power supplies.
Read onlineFairchild RURG3060 specifications
| Reverse Voltage (RURG3040CC) | 400 V |
|---|---|
| Reverse Voltage (RURG3060CC) | 600 V |
| Average Rectified Forward Current | 30 A |
| Repetitive Peak Surge Current | 70 A |
| Nonrepetitive Peak Surge Current | 325 A |
| Maximum Power Dissipation | 125 W |
| Operating Temperature Range | -65 to 175 °C |
Source: Fairchild Semiconductor RURG3040CC/RURG3060CC Ultrafast Dual Diodes Datasheet
All Fairchild RURG3060 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the primary application for these diodes?
They are intended for use as freewheeling/clamping diodes and rectifiers in switching power supplies.
From: Fairchild Semiconductor RURG3040CC/RURG3060CC Ultrafast Dual Diodes Datasheet
What is the reverse recovery time characteristic?
The diodes have ultrafast soft recovery characteristics with a reverse recovery time (trr) less than 55ns.
From: Fairchild Semiconductor RURG3040CC/RURG3060CC Ultrafast Dual Diodes Datasheet
What is the reverse recovery time of the RURG3060?
The device has an ultrafast recovery with soft characteristics, where tr is less than 55ns.
What are the primary applications for this diode?
It is intended for use as a freewheeling/clamping diode and rectifier in switching power supplies.
