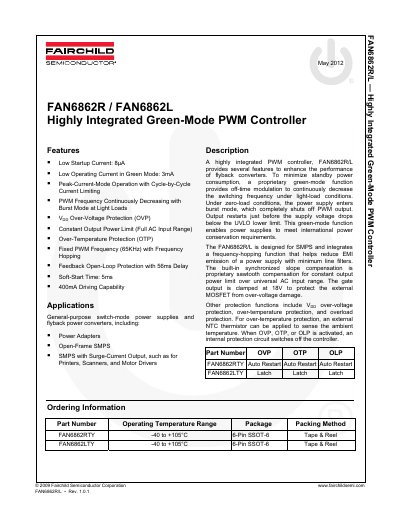

Fairchild FAN6862R/L Highly Integrated Green-Mode PWM Controller Datasheet
The FAN6862R/L is a highly integrated PWM controller designed to enhance the performance of flyback converters. It features proprietary green-mode functions that minimize standby power consumption by modulating off-time under light loads and entering burst mode at zero load, helping meet international power conservation requirements.
The device integrates several protection mechanisms including Vpp over-voltage protection (OVP), constant output power limit across the full AC input range, and feedback open-loop protection with a 56ms delay. It also includes an external NTC thermistor interface for over-temperature protection (OTP) and operates with a fixed PWM frequency of 65kHz that utilizes frequency hopping to reduce EMI emissions.
Fairchild FAN6862 specifications
| Startup Current | 8A |
|---|---|
| Operating Supply Current (Green Mode) | 3mA |
| PWM Frequency | 65KHz |
| Operating Junction Temperature Range | -40 to +150 °C |
| Storage Temperature Range | -55 to +150 °C |
Source: Fairchild FAN6862R/L Highly Integrated Green-Mode PWM Controller Datasheet
All Fairchild FAN6862 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the startup current of the FAN6862R/L?
The device has a low startup current of 8A.
From: Fairchild FAN6862R/L Highly Integrated Green-Mode PWM Controller Datasheet
How does the controller handle light loads?
It uses off-time modulation to continuously decrease switching frequency and enters burst mode at zero load.
From: Fairchild FAN6862R/L Highly Integrated Green-Mode PWM Controller Datasheet
What is the operating temperature range for the FAN6862?
The recommended operating ambient temperature range is -40 to +105°C.
From: Fairchild Semiconductor FAN6862 Highly Integrated Green-Mode PWM Controller Datasheet
Does the FAN6862 include over-temperature protection?
Yes, it includes over-temperature protection (OTP) which can be sensed using an external NTC thermistor.
From: Fairchild Semiconductor FAN6862 Highly Integrated Green-Mode PWM Controller Datasheet
