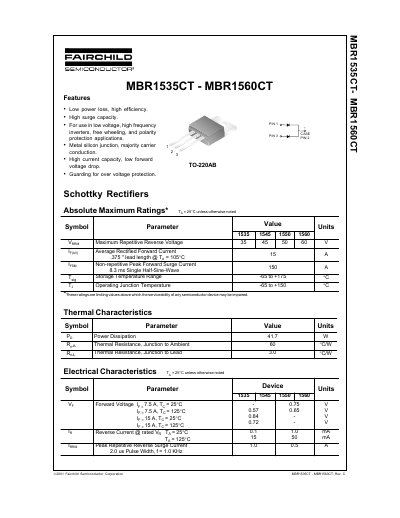

Fairchild MBR1535CT-MBR1560CT Schottky Rectifiers Datasheet
This document provides technical specifications for the Fairchild Semiconductor MBR1535CT to MBR1560CT series of Schottky rectifiers. These devices are designed for low voltage, high frequency applications such as inverters, free wheeling, and polarity protection circuits.
The datasheet outlines absolute maximum ratings including a 15A average forward current and reverse voltages ranging from 35V to 60V. It also details electrical characteristics like forward voltage drop and reverse leakage current at various temperatures, along with thermal resistance values.
Fairchild MBR1535CT - MBR1560CT specifications
| Average Rectified Forward Current | 15 A |
|---|---|
| Maximum Repetitive Reverse Voltage | 35 to 60 V |
| Non-repetitive Peak Forward Surge Current | 150 A |
| Storage Temperature Range | -65 to +175 °C |
| Operating Junction Temperature | -65 to +150 °C |
| Power Dissipation | 41.7 W |
Source: Fairchild MBR1535CT-MBR1560CT Schottky Rectifiers Datasheet
All Fairchild MBR1535CT - MBR1560CT documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the applications for these rectifiers?
They are intended for use in low voltage, high frequency inverters, free wheeling, and polarity protection applications.
From: Fairchild MBR1535CT-MBR1560CT Schottky Rectifiers Datasheet
What is the package type?
The devices are packaged in TO-220AB.
From: Fairchild MBR1535CT-MBR1560CT Schottky Rectifiers Datasheet
What is the maximum average rectified forward current?
The maximum average rectified forward current is 15 A.
From: Fairchild Semiconductor MBR1535CT-MBR1560CT Schottky Rectifiers Datasheet
What is the maximum non-repetitive peak forward surge current?
The maximum non-repetitive peak forward surge current is 150 A.
From: Fairchild Semiconductor MBR1535CT-MBR1560CT Schottky Rectifiers Datasheet
